Volume pricing
- 1+ pcs$1.38
- 10+ pcs$1.30
- 100+ pcs$1.22
- 500+ pcs$1.16
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

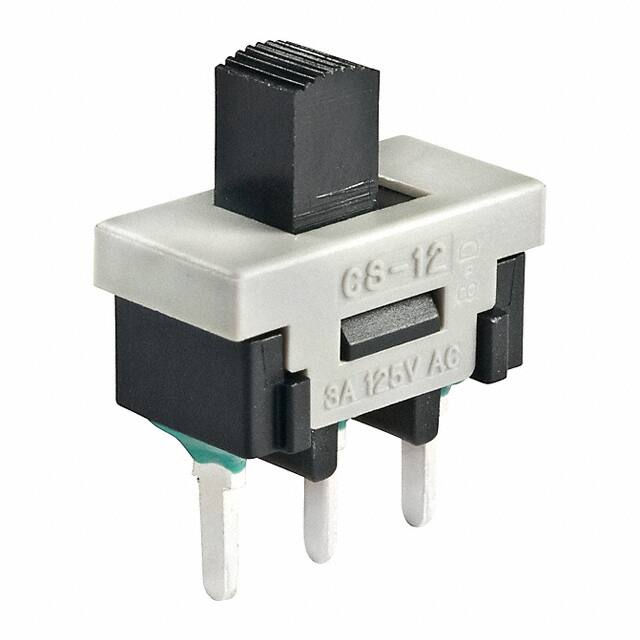

Specifications
- Montaj
- Through Hole
- Contact Style
- Non-Shorting
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish
- Silver
- Kurşunsuz
- Lead Free
- Ambalaj
- Tray
- Terminal Stili
- PC Pin
- Reach Svhc
- No SVHC
- Seri
- CS
- Contact Materials
- Copper
- Current Rating Amps
- 3A AC
- Switch Function
- On-On
- Fabrika Tedarik Süresi
- 5 Weeks
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Flammability Rating
- UL94 V-0
- Parça Durumu
- Active
- Actuator Type
- Standard
- Contact Timing
- Non-Shorting (BBM)
- Orientation
- Vertical
- Mechanical Life
- 50,000 Cycles
- Uzunluk
- 14mm
- Çalışma Sıcaklığı
- -30°C~85°C
- Circuit
- SPDT
- Max Voltage Rating Ac
- 250V
- Max Current Rating
- 3A
- ECCN Kodu
- EAR99
- Terminal
- PC Pins
- Voltage Rated Ac
- 125V
- Özellikler
- Epoxy Sealed Terminals
- Contact Current Rating
- 3A
- Switch Travel
- 2.20mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Depth
- 7.5mm
- Switch Type
- SLIDE SWITCH
- Kurşunsuz Kodu
- yes
- Electricallife
- 20,000 Cycles
- Illumination Type
- Non-Illuminated
- Akım Değeri
- 3A
- Actuator Length
- 5.10mm
- Montaj Tipi
- Through Hole
