Volume pricing
- 1+ pcs$1.62
- 10+ pcs$1.53
- 100+ pcs$1.44
- 500+ pcs$1.36
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

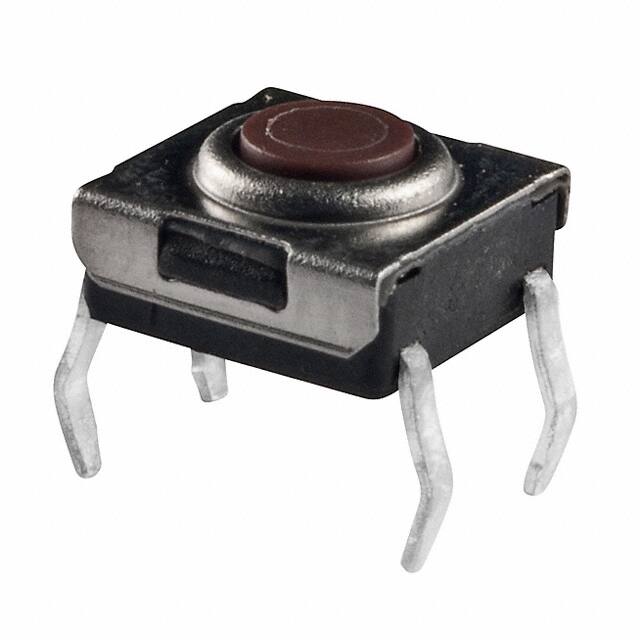

Specifications
- Contact Materials
- Copper
- Depth
- 6.8mm
- Contact Rating Voltage
- 0.05A @ 24VDC
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Seri
- CB
- Contact Plating
- Silver
- Reach Svhc
- No SVHC
- Actuator Height Off Pcb Vertical
- 3.10mm
- Operating Force
- 157gf
- Montaj
- Through Hole
- Ambalaj
- Tray
- Orientation
- Straight
- Mechanical Life
- 100,000 Cycles
- ECCN Kodu
- EAR99
- RoHS Durumu
- ROHS3 Compliant
- Uzunluk
- 6.2mm
- Contact Current Rating
- 50mA
- Terminal Stili
- PC Pin
- Voltage Rated Dc
- 24V
- Terminal
- PC Pins
- Yayın Yılı
- 2010
- Throw Configuration
- SPST
- Switch Type
- KEYPAD SWITCH
- Actuator Orientation
- Top Actuated
- Illumination
- Non-Illuminated
- Kurşunsuz
- Lead Free
- Fabrika Tedarik Süresi
- 5 Weeks
- Akım Değeri
- 50mA
- Illumination Type
- Illuminated, Non-Illuminated
- Özellikler
- Sealed - Fully
- Max Current Rating
- 50mA
- Çalışma Sıcaklığı
- -25°C~70°C
- Actuator Type
- Standard
- Montaj Tipi
- Through Hole
- Switch Travel
- 0.25mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Circuit
- SPST-NO
- Outline
- 6.20mm x 6.20mm
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
