Volume pricing
- 1+ pcs$6.58
- 10+ pcs$6.21
- 100+ pcs$5.85
- 500+ pcs$5.52
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

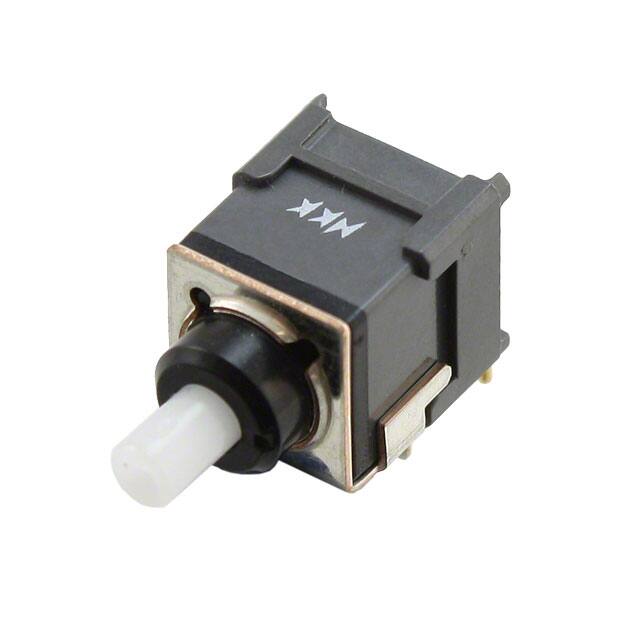

Specifications
- Terminal Material
- BRASS
- Insulation Resistance
- 500000000Ohm
- Bushing Length
- 0.106 inch
- Body Height
- 19.5834mm
- Dielectric Withstanding Voltage
- 500VAC V
- Power Rating
- 400mW
- Contact Current Rating
- 100mA
- Housing Material
- Polyamide
- Yayın Yılı
- 2010
- Reach Svhc
- No SVHC
- Çalışma Sıcaklığı
- -30°C~85°C
- Pcb Hole Count
- 5
- Ambalaj
- Tray
- Parça Durumu
- Active
- Color Actuatorcap
- White
- Contact Materials
- Copper
- Flammability Rating
- UL94 V-0
- Özellikler
- Antistatic
- Contact Resistance
- 0.05mOhm
- Electricallife
- 25,000 Cycles
- Terminal
- PC Pin
- Contact Plating
- Gold
- Seri
- BB
- Voltage Rated Dc
- 28V
- RoHS Durumu
- ROHS3 Compliant
- Actuator Travel
- 2.0066 mm
- Body Length Or Diameter
- 8.7884mm
- Fabrika Tedarik Süresi
- 5 Weeks
- Mechanical Life
- 25,000 Cycles
- Montaj Tipi
- Through Hole, Right Angle
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Current Rating Amps
- 0.4VA AC/DC
- Actuator Length
- 0.213 inch
- JESD-609 Kodu
- e4
- Terminal Stili
- PC Pin
- Washability
- SOLVENT
- Voltage Rated Ac
- 28V
- Kurşunsuz Kodu
- yes
- Body Breadth
- 8.7884 mm
- Actuator Type
- Plunger for Cap
