Volume pricing
- 1+ pcs$6.99
- 10+ pcs$6.60
- 100+ pcs$6.22
- 500+ pcs$5.87
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

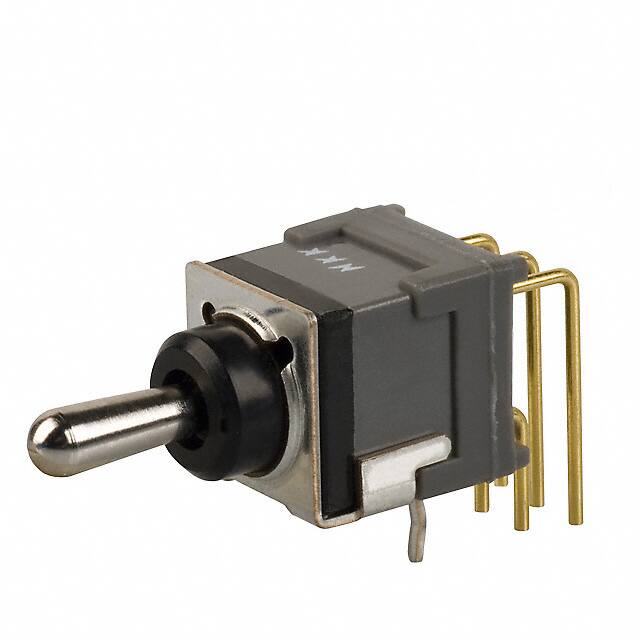

Specifications
- Circuit
- DPDT
- Max Voltage Rating Dc
- 28V
- Current Rating Amps
- 0.4VA AC/DC
- Orientation
- Right Angle
- Voltage Rated Ac
- 28V
- Genişlik
- 8.79mm
- Voltage Rated Dc
- 28V
- Insulation Resistance
- 500000000Ohm
- Kurşunsuz
- Lead Free
- Reach Svhc
- No SVHC
- Electricallife
- 50,000 Cycles
- Parça Durumu
- Active
- Terminal Stili
- PC Pin
- Illumination Type
- Illuminated, Non-Illuminated
- RoHS Durumu
- ROHS3 Compliant
- ECCN Kodu
- EAR99
- Akım Değeri
- 400mA
- Contact Resistance
- 0.05mOhm
- Contact Materials
- Bronze
- Dielectric Withstanding Voltage
- 500VAC V
- Ambalaj
- Bulk
- Yayın Yılı
- 2010
- Fabrika Tedarik Süresi
- 10 Weeks
- Özellikler
- Epoxy Sealed Terminals
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Contact Current Rating
- 100mA
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj Tipi
- Through Hole, Right Angle
- Terminal
- PC Pin
- Actuator Material
- Brass, Nickel Plated
- JESD-609 Kodu
- e4
- Contact Plating
- Gold
- Montaj
- PCB, Through Hole
- Depth
- 23mm
- Çalışma Sıcaklığı
- -30°C~85°C
- Max Current Rating
- 100mA
- Body Breadth
- 8.7884 mm
- Switch Type
- TOGGLE SWITCH
- Switch Function
- On-Off-On
- Pcb Hole Count
- 8
