Volume pricing
- 1+ pcs$6.23
- 10+ pcs$5.87
- 100+ pcs$5.54
- 500+ pcs$5.23
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

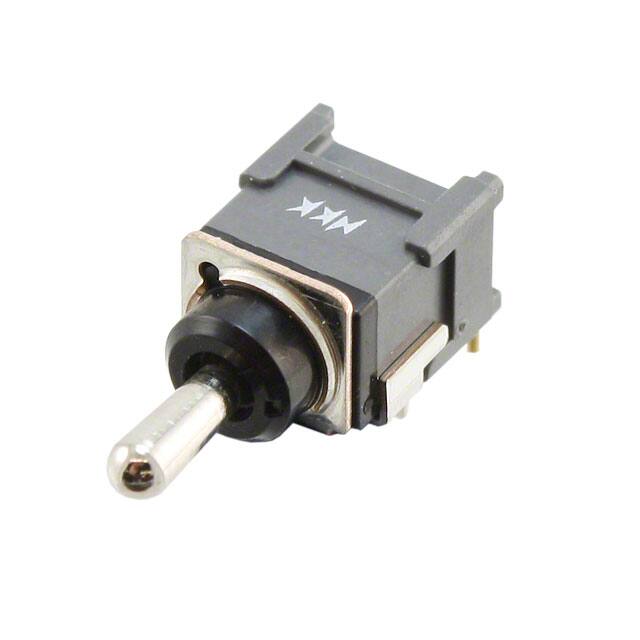

Specifications
- Terminal Stili
- PC Pin
- Kurşunsuz Kodu
- yes
- Body Height
- 11.176mm
- Contact Function
- ON-OFF-(ON)
- Actuator Type
- Standard Round
- Özellikler
- Epoxy Sealed Terminals
- Max Voltage Rating Ac
- 28V
- Contact Materials
- Bronze
- Switch Type
- TOGGLE SWITCH
- Voltage Rated Ac
- 28V
- RoHS Durumu
- ROHS3 Compliant
- Electricallife
- 50,000 Cycles
- Fabrika Tedarik Süresi
- 9 Weeks
- Max Voltage Rating Dc
- 28V
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Ambalaj
- Tray
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Actuator Material
- Brass, Nickel Plated
- Contact Resistance
- 0.05mOhm
- REACH Uyumluluk Kodu
- unknown
- Switch Function
- On-Off-Mom
- Dielectric Withstanding Voltage
- 500VAC V
- ECCN Kodu
- EAR99
- JESD-609 Kodu
- e4
- Contact Plating
- Gold
- Insulation Resistance
- 500000000Ohm
- Terminal
- PC Pin
- Pcb Hole Count
- 5
- Parça Durumu
- Active
- HTS Kodu
- 8536.50.90.40
- Circuit
- SPDT
- Body Breadth
- 7.2898 mm
- Voltage Rated Dc
- 28V
- Current Rating Amps
- 0.4VA AC/DC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Seri
- B
- Depth
- 20.5mm
- Montaj Tipi
- Through Hole, Right Angle
- Çalışma Sıcaklığı
- -30°C~85°C
- Illumination
- Non-Illuminated
