Volume pricing
- 1+ pcs$6.29
- 10+ pcs$5.93
- 100+ pcs$5.60
- 500+ pcs$5.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

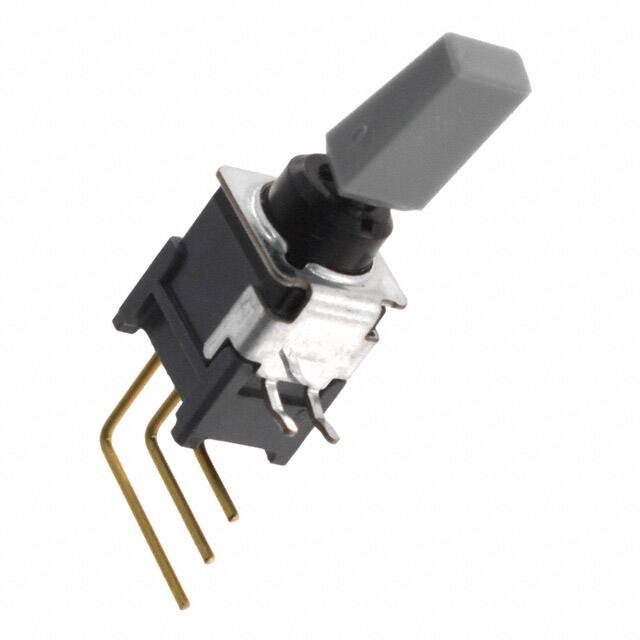

Specifications
- Switch Type
- TOGGLE SWITCH
- Actuator Type
- Snap On Paddle
- Çalışma Sıcaklığı
- -30°C~85°C
- Illumination
- Non-Illuminated
- Life Cycles
- 50000 cycles
- Washability
- SOLVENT
- Orientation
- Vertical
- Terminal
- PC Pin
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Resistance
- 0.05mOhm
- Bushing Thread
- Unthreaded
- Montaj Tipi
- Through Hole, Right Angle, Vertical
- Kurşunsuz
- Contains Lead
- Voltage Rated Dc
- 28V
- Yayın Yılı
- 2010
- Power Rating
- 400mW
- Akım Değeri
- 100mA
- Current Rating Amps
- 0.4VA AC/DC
- Electricallife
- 50,000 Cycles
- Sealing
- EPOXY
- Body Height
- 29.5656mm
- Kurşunsuz Kodu
- yes
- Ambalaj
- Tray
- Switch Function
- On-On
- Bushing Length
- 0.106 inch
- Body Breadth
- 8.001 mm
- Pcb Hole Count
- 5
- Voltage Rated Ac
- 28V
- Dielectric Withstanding Voltage
- 500VAC V
- End Contact Plating
- GOLD OVER NICKEL
- Parça Durumu
- Active
- Özellikler
- Gray Actuator
- Terminal Stili
- PC Pin
- Center Contact Plating
- GOLD OVER SILVER
- Circuit
- SPDT
- Actuator Material
- Polyamide (PA), Nylon
- Seri
- B
- Insulation Materials
- GLASS FILLED POLYAMIDE
- Montaj
- Through Hole, Vertical
- Solderability
- WAVE
