Volume pricing
- 1+ pcs$8.06
- 10+ pcs$7.60
- 100+ pcs$7.17
- 500+ pcs$6.77
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

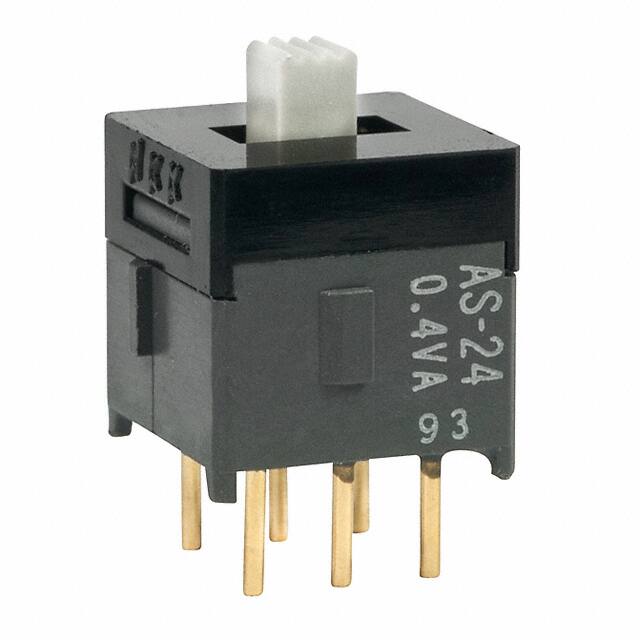

Specifications
- Pcb Hole Count
- 6
- Body Height
- 14.6812mm
- Voltage Rated Ac
- 28V
- Parça Durumu
- Active
- Insulation Resistance
- 500000000Ohm
- Mechanical Life
- 50,000 Cycles
- Özellikler
- Jumper needed to achieve triple throw
- Circuit
- SP3T
- Actuator Type
- Standard
- Operating Force
- 260gf
- Switch Function
- On-On-On
- Voltage Rated Dc
- 28V
- Switch Type
- SLIDE SWITCH
- Actuator Length
- 2.50mm
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- RoHS Durumu
- ROHS3 Compliant
- ECCN Kodu
- EAR99
- Max Current Rating
- 100mA
- Contact Resistance
- 0.05mOhm
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Montaj Tipi
- Through Hole
- Ambalaj
- Tray
- Montaj
- Through Hole
- Terminal Stili
- PC Pin
- Pozisyon Sayısı
- 3
- Contact Materials
- Phosphor Bronze
- Insulation Materials
- CARBON COMPOSITE POLYMER
- Contact Timing
- Non-Shorting (BBM)
- Kurşunsuz
- Lead Free
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Electricallife
- 50,000 Cycles
- Depth
- 5.38mm
- Kurşunsuz Kodu
- yes
- Body Breadth
- 9.1948 mm
- Illumination Type
- Non-Illuminated
- Contact Style
- Non-Shorting
- Uzunluk
- 9.8mm
- Actuatorcolor
- WHITE
- Seri
- AS
- Yayın Yılı
- 2006
