Volume pricing
- 1+ pcs$9.14
- 10+ pcs$8.62
- 100+ pcs$8.13
- 500+ pcs$7.67
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

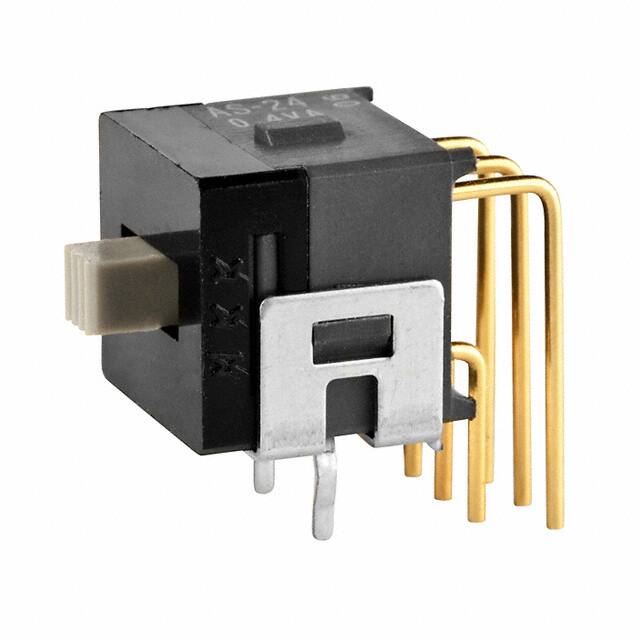

Specifications
- Body Breadth
- 10.0076 mm
- Depth
- 12.7mm
- Kurşunsuz Kodu
- yes
- Electricallife
- 50,000 Cycles
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Materials
- Phosphor Bronze
- Kurşunsuz
- Contains Lead
- Contact Timing
- Non-Shorting (BBM)
- Insulation Materials
- CARBON COMPOSITE POLYMER
- Terminal
- PC Pins
- Max Voltage Rating Dc
- 28V
- Fabrika Tedarik Süresi
- 5 Weeks
- Current Rating Amps
- 0.4VA AC/DC
- JESD-609 Kodu
- e4
- Contact Finish
- Gold
- Seri
- AS
- Yayın Yılı
- 2006
- Max Voltage Rating Ac
- 28V
- Dielectric Withstanding Voltage
- 500VAC V
- Solderability
- WAVE
- Çalışma Sıcaklığı
- -30°C~85°C
- Illumination Type
- Non-Illuminated
- Uzunluk
- 9.8mm
- Actuatorcolor
- WHITE
- Contact Style
- Non-Shorting
- RoHS Durumu
- ROHS3 Compliant
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Actuator Length
- 2.50mm
- Switch Type
- SLIDE SWITCH
- Voltage Rated Dc
- 28V
- Actuator Type
- Standard
- Operating Force
- 260gf
- Özellikler
- Jumper needed to achieve triple throw
- Circuit
- SP3T
- Switch Function
- On-On-On
- Body Height
- 15.2146mm
- Voltage Rated Ac
- 28V
- Pcb Hole Count
- 8
- Mechanical Life
- 50,000 Cycles
- Parça Durumu
- Active
