Volume pricing
- 1+ pcs$7.59
- 10+ pcs$7.16
- 100+ pcs$6.76
- 500+ pcs$6.38
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

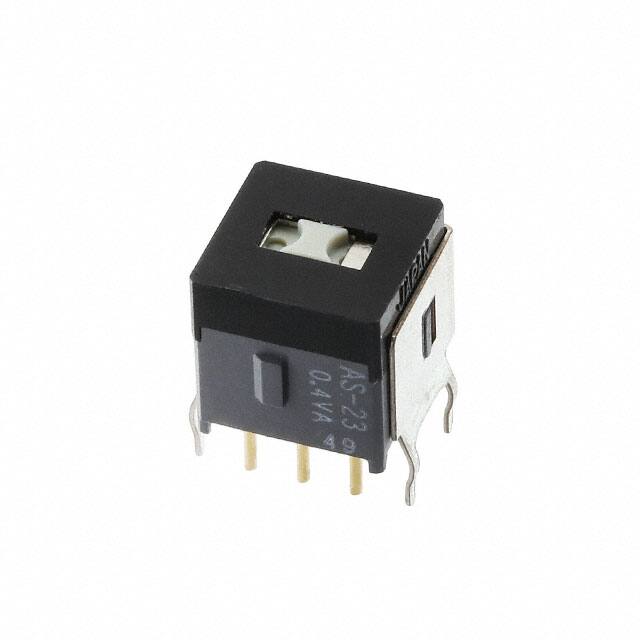

Specifications
- Kurşunsuz Kodu
- yes
- Switch Type
- SLIDE SWITCH
- Body Length Or Diameter
- 9.8044mm
- Voltage Rated Dc
- 28V
- Switch Travel
- 2.50mm
- Body Breadth
- 9.4996 mm
- RoHS Durumu
- ROHS3 Compliant
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Mechanical Life
- 50,000 Cycles
- Insulation Resistance
- 500000000Ohm
- Parça Durumu
- Active
- Insulation Materials
- CARBON COMPOSITE POLYMER
- Contact Timing
- Non-Shorting (BBM)
- Body Height
- 12.192mm
- Contact Materials
- Phosphor Bronze
- Voltage Rated Ac
- 28V
- Pcb Hole Count
- 10
- Electricallife
- 50,000 Cycles
- Switch Function
- On-Off-On
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Type
- Flush
- Operating Force
- 260gf
- Özellikler
- Epoxy Sealed Terminals
- Circuit
- DPDT
- Montaj
- Through Hole
- Ambalaj
- Tray
- Pozisyon Sayısı
- 3
- Terminal Stili
- PC Pin
- JESD-609 Kodu
- e4
- Fabrika Tedarik Süresi
- 10 Weeks
- Current Rating Amps
- 0.4VA AC/DC
- Length Termination
- 0.122 inch
- Terminal
- PC Pin
- Actuatorcolor
- WHITE
- Contact Style
- Non-Shorting
- Illumination Type
- Non-Illuminated
- Additional Feature
- MOUNTING BRACKET
- Dielectric Withstanding Voltage
- 500VAC V
- Solderability
- WAVE
- Çalışma Sıcaklığı
- -30°C~85°C
