Volume pricing
- 1+ pcs$6.92
- 10+ pcs$6.53
- 100+ pcs$6.16
- 500+ pcs$5.81
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

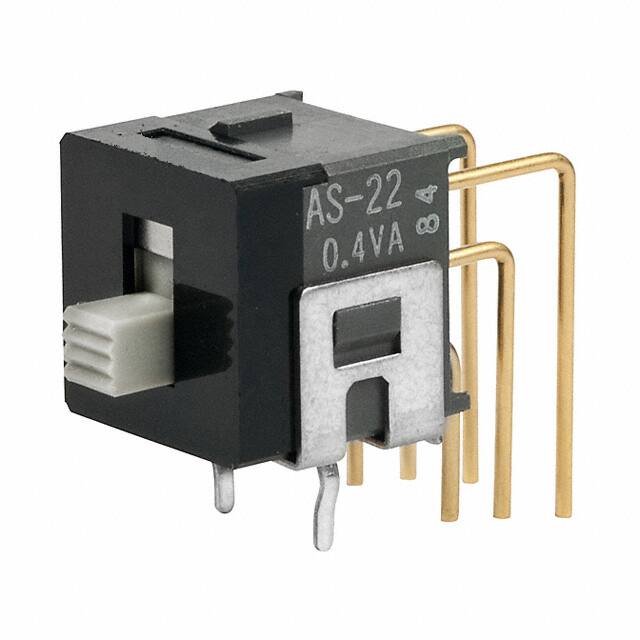

Specifications
- Terminal
- PC Pin
- Max Voltage Rating Dc
- 28V
- Fabrika Tedarik Süresi
- 5 Weeks
- Current Rating Amps
- 0.4VA AC/DC
- JESD-609 Kodu
- e4
- Montaj
- Through Hole, Vertical
- Ambalaj
- Tray
- Pozisyon Sayısı
- 3
- Terminal Stili
- PC Pin
- Montaj Tipi
- Through Hole, Right Angle, Vertical
- Contact Finish
- Gold
- Seri
- AS
- Contact Resistance
- 0.05mOhm
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Max Voltage Rating Ac
- 28V
- Dielectric Withstanding Voltage
- 500VAC V
- Çalışma Sıcaklığı
- -30°C~85°C
- Solderability
- WAVE
- Additional Feature
- MOUNTING BRACKET
- Uzunluk
- 9.5mm
- Actuatorcolor
- WHITE
- Contact Style
- Non-Shorting
- Max Current Rating
- 100mA
- RoHS Durumu
- ROHS3 Compliant
- Actuator Length
- 2.50mm
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Body Breadth
- 9.4996 mm
- Depth
- 17.8mm
- Kurşunsuz Kodu
- yes
- Switch Type
- SLIDE SWITCH
- Voltage Rated Dc
- 28V
- Actuator Type
- Standard
- Operating Force
- 260gf
- Özellikler
- Epoxy Sealed Terminals
- Circuit
- DPDT
- Electricallife
- 50,000 Cycles
- Switch Function
- On-On
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Body Height
- 17.7546mm
- Contact Materials
- Phosphor Bronze
