Volume pricing
- 1+ pcs$4.96
- 10+ pcs$4.68
- 100+ pcs$4.41
- 500+ pcs$4.16
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

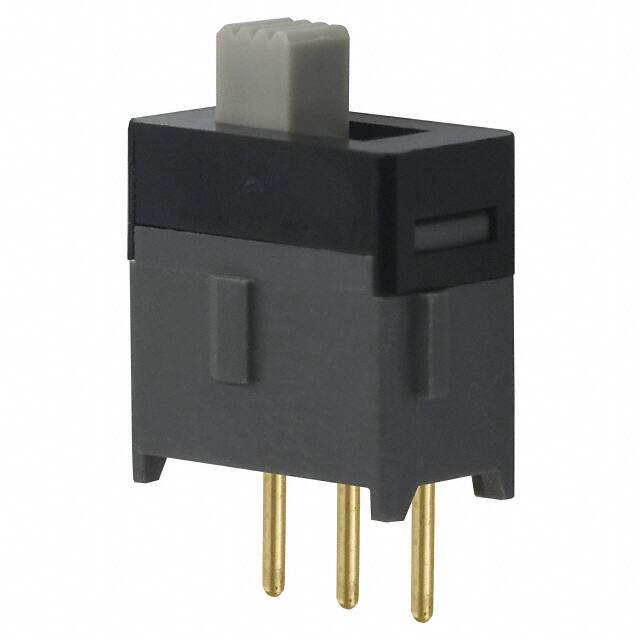

Specifications
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Dielectric Withstanding Voltage
- 500VAC V
- Insulation Materials
- CARBON COMPOSITE POLYMER
- RoHS Durumu
- ROHS3 Compliant
- Contact Resistance
- 0.05mOhm
- Terminal
- PC Pins
- Switching Capacity
- 400 mW
- Operating Force
- 260gf
- JESD-609 Kodu
- e4
- Max Voltage Rating Dc
- 28V
- Kurşunsuz Kodu
- yes
- Solderability
- WAVE
- Parça Durumu
- Active
- Montaj
- Through Hole
- Max Voltage Rating Ac
- 28V
- ECCN Kodu
- EAR99
- Özellikler
- Epoxy Sealed Terminals
- Illumination Type
- Non-Illuminated
- Contact Timing
- Non-Shorting (BBM)
- Pcb Hole Count
- 3
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Switching Voltage
- 28V
- Terminal Stili
- PC Pin
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Actuator Type
- Standard
- Max Current Rating
- 100mA
- Circuit
- SPDT
- Body Height
- 14.6812mm
- Depth
- 5.38mm
- Uzunluk
- 9.8mm
- Electricallife
- 50,000 Cycles
- Actuatorcolor
- WHITE
- Seri
- AS
- Current Rating Amps
- 0.4VA AC/DC
- Contact Materials
- Phosphor Bronze
- Pozisyon Sayısı
- 3
- Kurşunsuz
- Lead Free
- Çalışma Sıcaklığı
- -30°C~85°C
- Fabrika Tedarik Süresi
- 5 Weeks
- Insulation Resistance
- 500000000Ohm
