Volume pricing
- 1+ pcs$5.57
- 10+ pcs$5.25
- 100+ pcs$4.96
- 500+ pcs$4.68
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

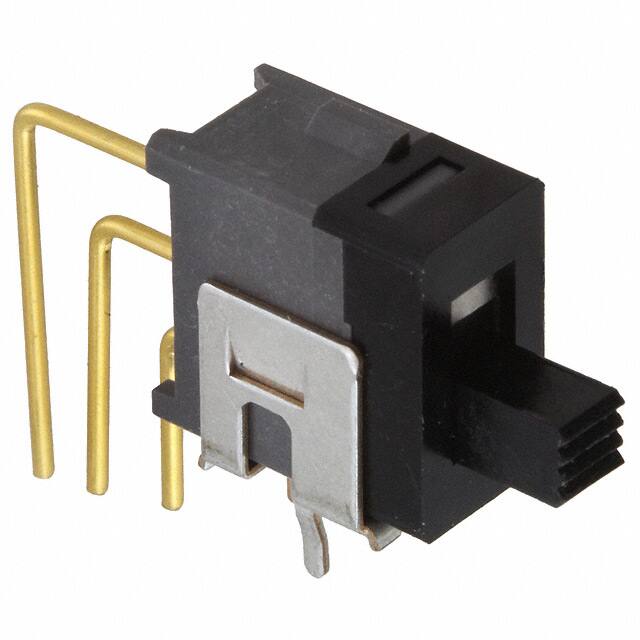

Specifications
- Yüzey Montaj
- NO
- Actuator Length
- 3.80mm
- Mechanical Life
- 50,000 Cycles
- Length Termination
- 0.122 inch
- Circuit
- SPDT
- Contact Timing
- Non-Shorting (BBM)
- Dielectric Withstanding Voltage
- 500VAC V
- Contact Resistance
- 0.05mOhm
- Seri
- AS
- Switch Function
- On-On
- Terminal Stili
- PC Pin
- Insulation Resistance
- 500000000Ohm
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Çalışma Sıcaklığı
- -30°C~85°C
- Ambalaj
- Tray
- Contact Finish
- Gold
- Electricallife
- 50,000 Cycles
- Pcb Hole Count
- 5
- Body Breadth
- 5.6896 mm
- Mounting Feature
- THROUGH HOLE-RIGHT ANGLE
- Contact Materials
- Phosphor Bronze
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Current Rating Amps
- 0.4VA AC/DC
- Pozisyon Sayısı
- 3
- Voltage Rated Ac
- 28V
- Body Height
- 15.3416mm
- Parça Durumu
- Active
- Operating Force
- 260gf
- Özellikler
- Epoxy Sealed Terminals
- Additional Feature
- ROHS COMPLIANT
- Switch Travel
- 2.50mm
- Yayın Yılı
- 2010
- JESD-609 Kodu
- e4
- Body Length Or Diameter
- 10.2108mm
- Fabrika Tedarik Süresi
- 5 Weeks
- RoHS Durumu
- ROHS3 Compliant
- Actuator Type
- Standard
- Montaj Tipi
- Through Hole, Right Angle, Vertical
