Volume pricing
- 1+ pcs$5.25
- 10+ pcs$4.95
- 100+ pcs$4.67
- 500+ pcs$4.41
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

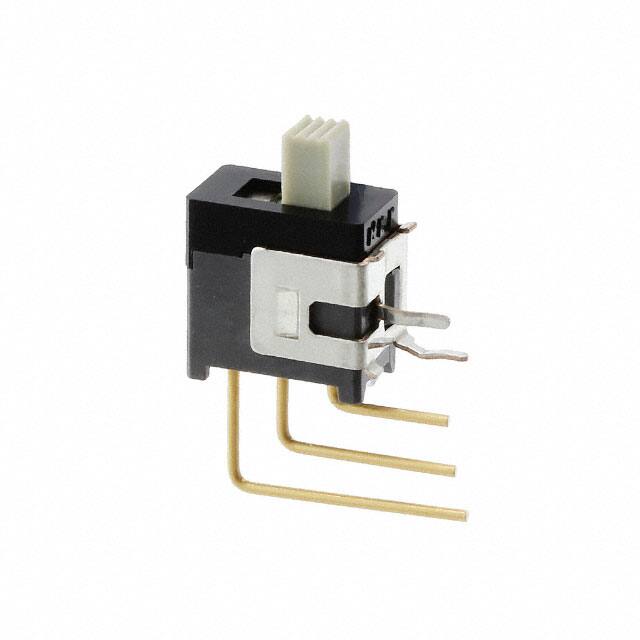

Specifications
- Solderability
- WAVE
- Fabrika Tedarik Süresi
- 5 Weeks
- Actuator Type
- Standard
- Max Voltage Rating Ac
- 28V
- Montaj Tipi
- Through Hole, Right Angle, Vertical
- Contact Materials
- Phosphor Bronze
- Body Height
- 10.2mm
- HTS Kodu
- 8536.50.90.50
- Contact Currentdcmax
- 0.014A
- Operating Force
- 260gf
- Parça Durumu
- Active
- Yayın Yılı
- 2006
- Additional Feature
- MOUNTING BRACKET
- Terminal Stili
- PC Pin
- Sealing
- EPOXY TERMINAL SEALED
- Insulation Resistance
- 500000000Ohm
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Pcb Hole Count
- 5
- Illumination Type
- Non-Illuminated
- Contact Currentacmax
- 0.014A
- Actuator Length
- 3.80mm
- Circuit
- SPDT
- Seri
- AS
- ECCN Kodu
- EAR99
- JESD-609 Kodu
- e4
- Max Current Rating
- 100mA
- Switch Type
- SLIDE SWITCH
- RoHS Durumu
- ROHS3 Compliant
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Pozisyon Sayısı
- 3
- Current Rating Amps
- 0.4VA AC/DC
- Depth
- 19.1mm
- Voltage Rated Ac
- 28V
- Özellikler
- Epoxy Sealed Terminals
- Montaj
- Through Hole, Vertical
- Contact Style
- Non-Shorting
- Voltage Rated Dc
- 28V
- Max Voltage Rating Dc
- 28V
- Kurşunsuz Kodu
- yes
- Switch Travel
- 2.50mm
