Volume pricing
- 1+ pcs$4.52
- 10+ pcs$4.27
- 100+ pcs$4.02
- 500+ pcs$3.80
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

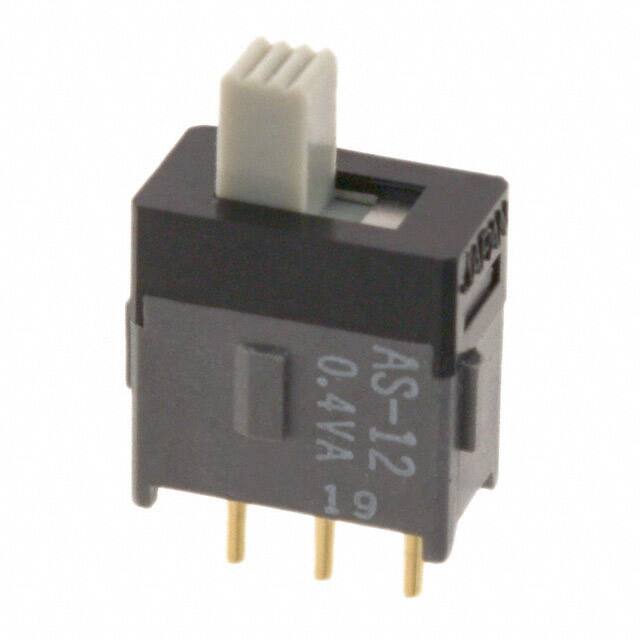

Specifications
- JESD-609 Kodu
- e4
- Max Current Rating
- 100mA
- ECCN Kodu
- EAR99
- Switch Type
- SLIDE SWITCH
- RoHS Durumu
- ROHS3 Compliant
- Voltage Rated Ac
- 28V
- Depth
- 5.38mm
- Current Rating Amps
- 0.4VA AC/DC
- Pozisyon Sayısı
- 3
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Materials
- CARBON COMPOSITE POLYMER
- Switch Travel
- 2.50mm
- Kurşunsuz Kodu
- yes
- Voltage Rated Dc
- 28V
- Max Voltage Rating Dc
- 28V
- Contact Style
- Non-Shorting
- Montaj
- Through Hole
- Özellikler
- Epoxy Sealed Terminals
- Genişlik
- 5.39mm
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Terminal
- PC Pins
- Uzunluk
- 9.8mm
- Switch Function
- On-On
- Electricallife
- 50,000 Cycles
- Contact Finish
- Gold
- Body Breadth
- 5.3848 mm
- Ambalaj
- Tray
- Çalışma Sıcaklığı
- -30°C~85°C
- Actuatorcolor
- WHITE
- Mechanical Life
- 50,000 Cycles
- Kurşunsuz
- Lead Free
- Akım Değeri
- 400mA
- Contact Resistance
- 0.05mOhm
- Dielectric Withstanding Voltage
- 500VAC V
- Contact Timing
- Non-Shorting (BBM)
- Fabrika Tedarik Süresi
- 5 Weeks
- Solderability
- WAVE
- Max Voltage Rating Ac
- 28V
- Montaj Tipi
- Through Hole
- Actuator Type
- Standard
