Volume pricing
- 1+ pcs$4.55
- 10+ pcs$4.29
- 100+ pcs$4.05
- 500+ pcs$3.82
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

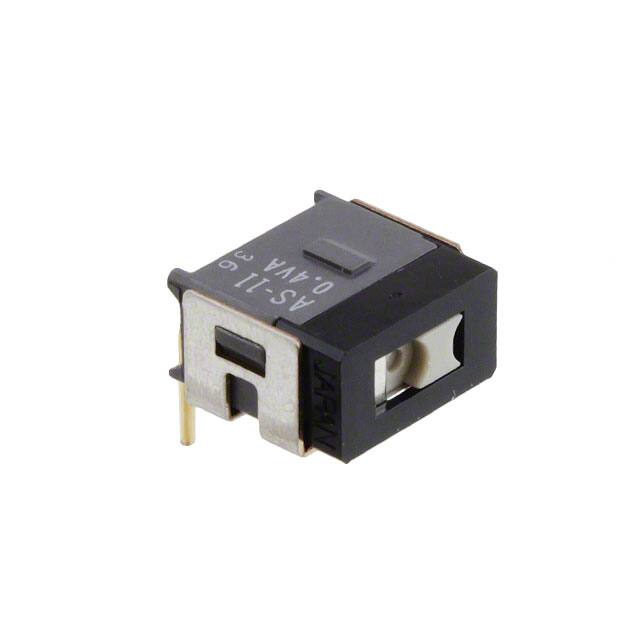

Specifications
- Body Breadth
- 6.1722 mm
- Contact Finish
- Gold
- Electricallife
- 50,000 Cycles
- Çalışma Sıcaklığı
- -30°C~85°C
- Actuatorcolor
- WHITE
- Ambalaj
- Tray
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Uzunluk
- 9.8mm
- Switch Function
- On-Off
- Terminal
- PC Pin
- Contact Resistance
- 0.05mOhm
- Contact Timing
- Non-Shorting (BBM)
- Dielectric Withstanding Voltage
- 500VAC V
- Mechanical Life
- 50,000 Cycles
- Kurşunsuz
- Lead Free
- Switch Type
- SLIDE SWITCH
- RoHS Durumu
- ROHS3 Compliant
- Max Current Rating
- 100mA
- JESD-609 Kodu
- e4
- Switch Travel
- 2.50mm
- Insulation Materials
- CARBON COMPOSITE POLYMER
- Contact Style
- Non-Shorting
- Montaj
- Through Hole
- Özellikler
- Epoxy Sealed Terminals
- Voltage Rated Dc
- 28V
- Max Voltage Rating Dc
- 28V
- Kurşunsuz Kodu
- yes
- Voltage Rated Ac
- 28V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Depth
- 10.2mm
- Current Rating Amps
- 0.4VA AC/DC
- Pozisyon Sayısı
- 3
- Pcb Hole Count
- 5
- Contact Dc Max Power Rating R Load
- 0.4VA@28VDC
- Insulation Resistance
- 500000000Ohm
- Terminal Stili
- PC Pin
- Seri
- AS
- Circuit
- SPST
- Montaj Tipi
- Through Hole, Right Angle
- Max Voltage Rating Ac
- 28V
