Volume pricing
- 1+ pcs$7.80
- 10+ pcs$7.36
- 100+ pcs$6.94
- 500+ pcs$6.55
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

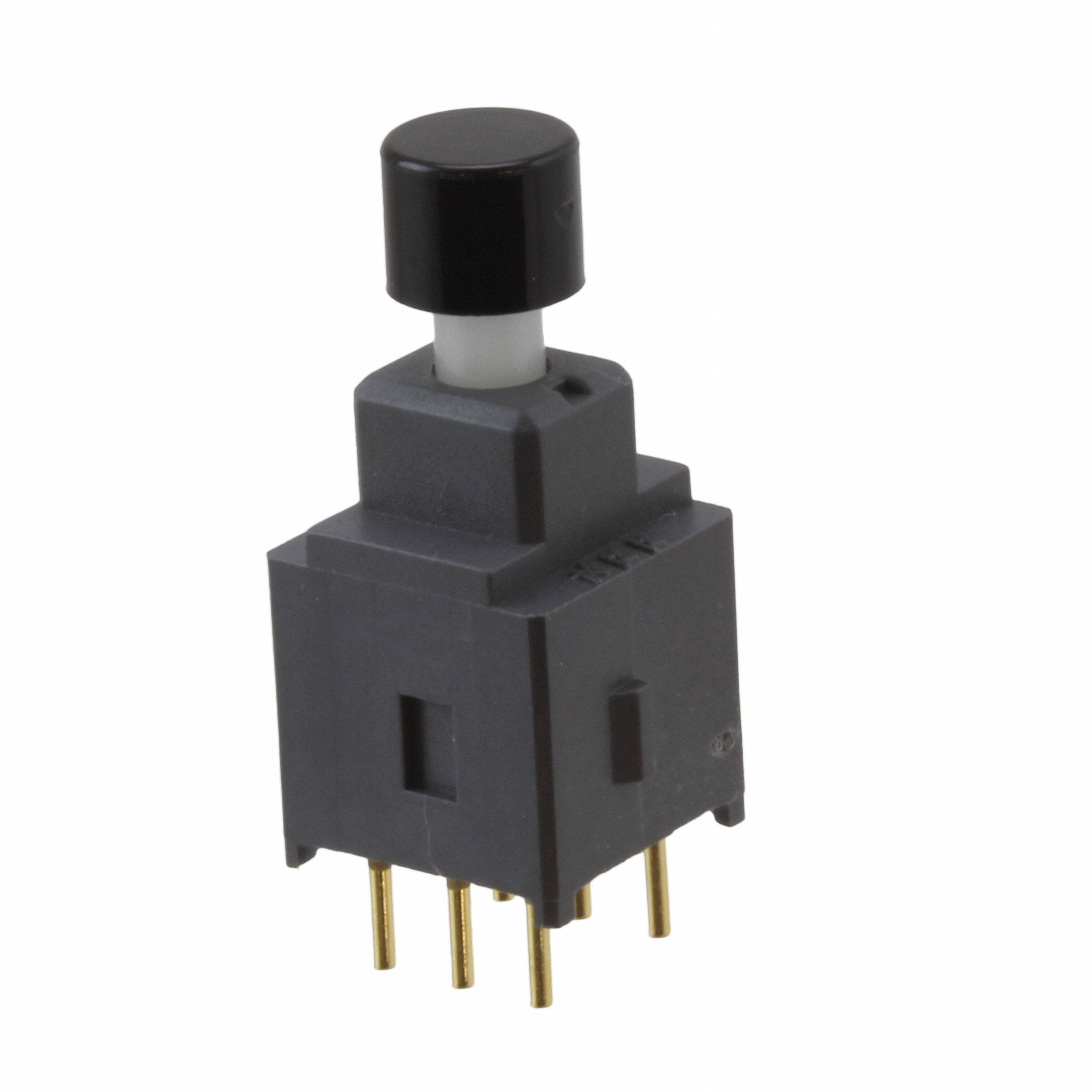

Specifications
- Orientation
- Vertical
- Montaj Tipi
- Through Hole
- Contact Resistance
- 0.05mOhm
- Operating Forcemax
- 2.55 N
- Contact Dc Max Rating R Load
- .014A@28VDC
- Contact Currentdcmax
- 0.014A
- Power Rating
- 400mW
- Terminal Stili
- PC Pin
- Ambalaj
- Tray
- Montaj
- Through Hole
- Sealing
- EPOXY TERMINAL SEALED; MOISTURE PROOF
- Contact Function
- ON-(ON)
- Voltage Rated Ac
- 28V
- Body Height
- 9.6mm
- Pcb Hole Count
- 6
- Mechanical Life
- 50,000 Cycles
- Contact Plating
- Gold
- Contact Ac Max Rating R Load
- .014A@28VAC
- Parça Durumu
- Active
- Insulation Resistance
- 500000000Ohm
- Actuator Type
- Round, Button
- Circuit
- DPDT
- Özellikler
- Sealed - Fully
- Switch Function
- On-Mom
- Body Length Or Diameter
- 9.8mm
- Center Contact Material
- PHOSPHOR BRONZE
- Voltage Rated Dc
- 28V
- Washability
- SOLVENT
- Kılıf / Paket
- 201
- RoHS Durumu
- ROHS3 Compliant
- Actuator Length
- 0.248 inch
- Actuator Material
- POLYCARBONATE
- ECCN Kodu
- EAR99
- Yayın Yılı
- 2010
- End Contact Material
- BRASS
- Seri
- AB
- Contact Currentacmax
- 0.014A
- Housing Material
- Polyamide
- Solderability
- WAVE
- Çalışma Sıcaklığı
- -30°C~85°C
