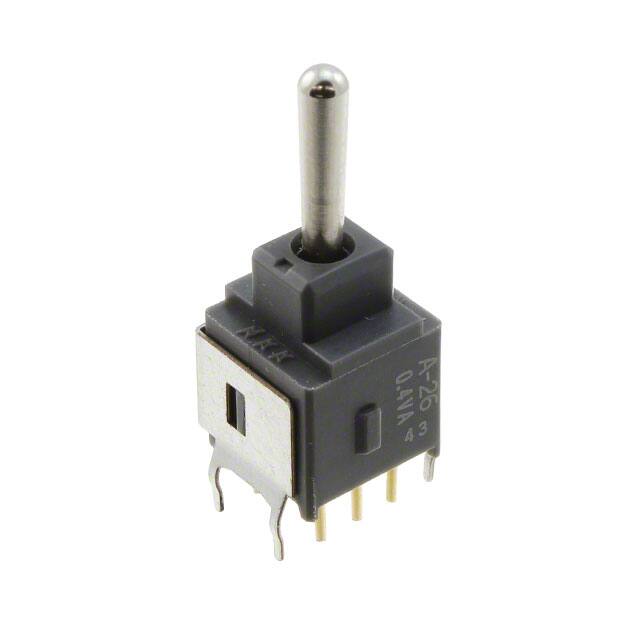

A26AB

Specifications

Sealing

EPOXY

Length Termination

0.122 inch

Terminal

PC Pin

Contact Function

(ON)-ON-(ON)

Fabrika Tedarik Süresi

18 Weeks

Current Rating Amps

0.4VA AC/DC

JESD-609 Kodu

e4

Power Rating

400mW

Terminal Stili

PC Pin

Montaj

Through Hole

Ambalaj

Bulk

Montaj Tipi

Through Hole

Illumination

Non-Illuminated

Yayın Yılı

2010

Seri

A

Contact Resistance

0.05mOhm

Çalışma Sıcaklığı

-30°C~85°C

Illumination Type

Illuminated, Non-Illuminated

Actuatorcolor

WHITE

RoHS Durumu

ROHS3 Compliant

Actuator Length

10.00mm

Actuator Material

Brass, Nickel Plated

Body Breadth

9.4996 mm

Switch Type

TOGGLE SWITCH

Body Length Or Diameter

9.8044mm

Center Contact Material

PHOSPHOR BRONZE

Bushing Thread

Unthreaded, Square

Voltage Rated Dc

28V

Washability

SOLVENT

Actuator Type

Standard Round

Circuit

SP3T

Özellikler

Jumper needed to achieve triple throw

Bushing Length

0.138 inch

Electricallife

50,000 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Switch Function

Mom-On-Mom

Voltage Rated Ac

28V

Body Height

26.2128mm

Pcb Hole Count

10

Insulation Resistance

500000000Ohm
