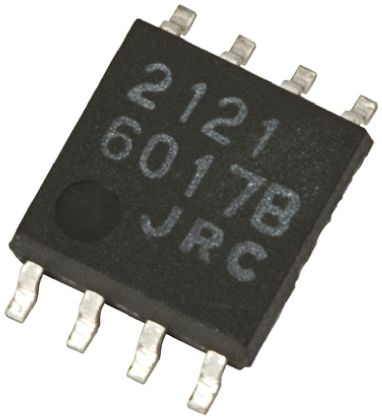

NJM4560M

Specifications

Voltage Gain

100 dB

Common Mode Rejection Ratio

70 dB

Operating Supply Voltage

18 V

Casepackage

DIP

Min. Çalışma Sıcaklığı

-40 °C

Number Of Channels

2

Number Of Circuits

2

Montaj

Surface Mount

Power Dissipation

300 mW

Nominal Supply Current

5.7 mA

Kurşunsuz

Lead Free

RoHS

Compliant

Maks. Çalışma Sıcaklığı

85 °C

Pin Sayısı

8

Input Offset Voltage Vos

6 mV

Operating Supply Current

4.3 mA

Radyasyon Dayanımı

No

Min Dual Supply Voltage

4 V

Slew Rate

4 V/µs

Max Dual Supply Voltage

18 V

Number Of Elements

2

Input Bias Current

40 nA

Gain Bandwidth Product

10 MHz
