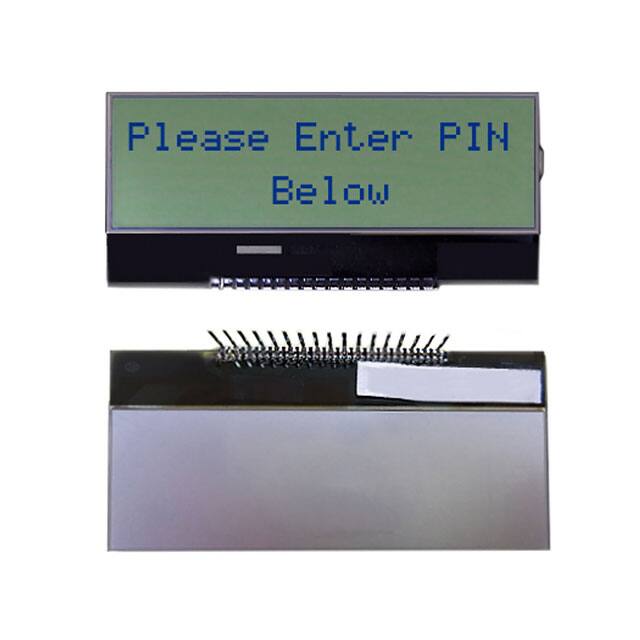

NHD-C0216CU-FN-GBW-3V

Specifications

Text Color

Blue

Besleme Gerilimi

2.7V~5.5V

Outline LXWXH

49.70mm x 25.30mm x 2.00mm

Yayın Yılı

2009

RoHS Durumu

RoHS Compliant

Display Format

16 x 2

Nem Hassasiyeti (MSL)

Not Applicable

Character Size

4.68mm Hx2.21mm W

Parça Durumu

Active

Operating Supply Voltage

5.5V

Controller Type

ST-7032

Number Of Characters

32

Viewing Area

45.70mm L x 14.30mm W

Backlight

Without Backlight

Character Format

5 x 8 Dots

Background Color

Gray

Display Mode

Transflective

Fabrika Tedarik Süresi

14 Weeks

Çalışma Sıcaklığı

-20°C~70°C

Dot Size

0.41mm Wx0.55mm H

Interface

Parallel

Display Type

STN - Super-Twisted Nematic

Ambalaj

Bulk
