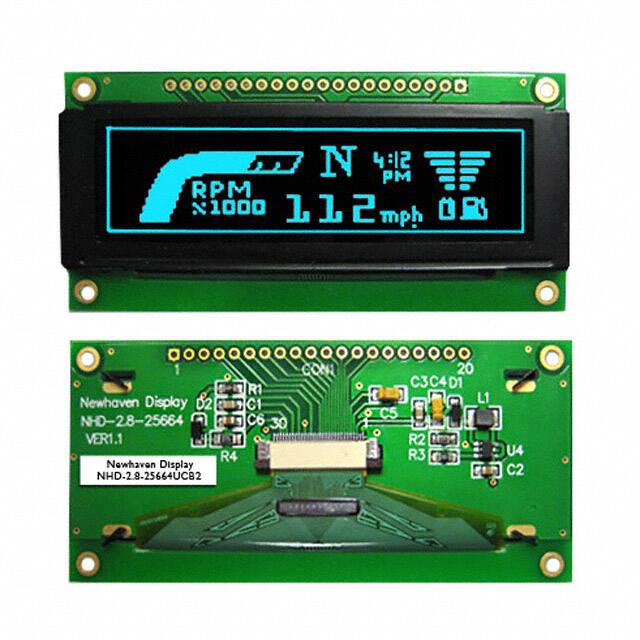

NHD-2.8-25664UCB2

Specifications

Viewing Angle

80 °

Viewing Area

72.00mm W x 20.00mm H

Backlight

Without Backlight

Montaj

Wire

Maks. Çalışma Sıcaklığı

85°C

Parça Durumu

Active

Controller Type

SSD1322

Dot Pitch

0.27mm Wx0.27mm H

Diagonal Size

2.8 in

Min. Çalışma Sıcaklığı

-40°C

RoHS Durumu

RoHS Compliant

Resolution Height

64 pixel

Diagonal Screen Size

2.8 71.12mm

Nem Hassasiyeti (MSL)

Not Applicable

Display Type

OLED - Passive Matrix

Dot Size

0.25mm Wx0.25mm H

Operating Supply Current

150mA

Interface

Parallel/Serial

Fabrika Tedarik Süresi

18 Weeks

Background Color

Black

Operating Supply Voltage

2.95V

Brightness

80 cd/m^2

Dot Pixels

256 x 64

Resolution Width

256 pixel

Graphics Color

Blue
