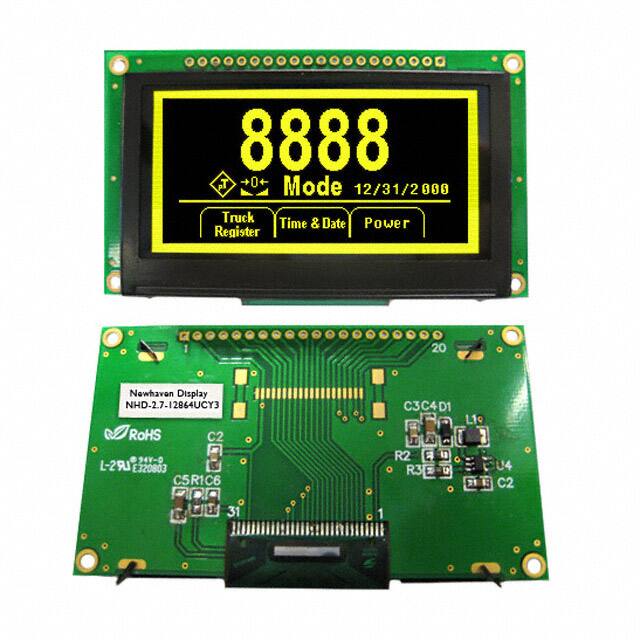

NHD-2.7-12864UCY3

Specifications

RoHS Durumu

RoHS Compliant

Min. Çalışma Sıcaklığı

-40°C

Nem Hassasiyeti (MSL)

Not Applicable

Diagonal Screen Size

2.7 68.58mm

Resolution Height

64 pixel

Diagonal Size

2.7 in

Parça Durumu

Obsolete

Dot Pitch

0.48mm Wx0.48mm H

Overall Length

82mm

Maks. Çalışma Sıcaklığı

85°C

Viewing Angle

80 °

Viewing Area

66.00mm W x 33.00mm H

Backlight

Without Backlight

Overall Height

47.5mm

Dot Size

0.45mm Wx0.45mm H

Operating Supply Current

175mA

Interface

Parallel, 8-Bit, SPI

Display Type

OLED - Passive Matrix

Operating Supply Voltage

3V

Background Color

Black

Besleme Gerilimi

2.8V

Overall Depth

3.5mm

Graphics Color

Yellow

Resolution Width

128 pixel

Dot Pixels

128 x 64

Brightness

100 cd/m^2
