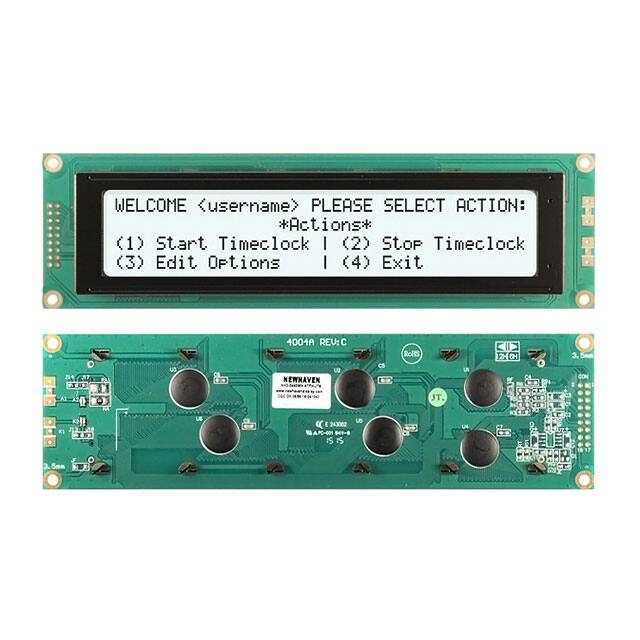

NHD-0440WH-ATFH-JT#

Specifications

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - White

Viewing Area

147.00mm L x 29.50mm W

Background Color

White

Display Type

FSTN - Film Super-Twisted Nematic

Display Format

40 x 4

Character Format

5 x 8 Dots

Character Size

4.89mm Hx2.78mm W

Outline LXWXH

190.00mm x 54.00mm x 13.60mm

Yayın Yılı

2009

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Dot Size

0.50mm Wx0.55mm H

Besleme Gerilimi

4.75V~5.25V

Backlight Type

LED

Controller Type

ST7066-0A

Text Color

Black

Ambalaj

Bulk

Çalışma Sıcaklığı

-20°C~70°C

Number Of Characters

160

Interface

Parallel

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective
