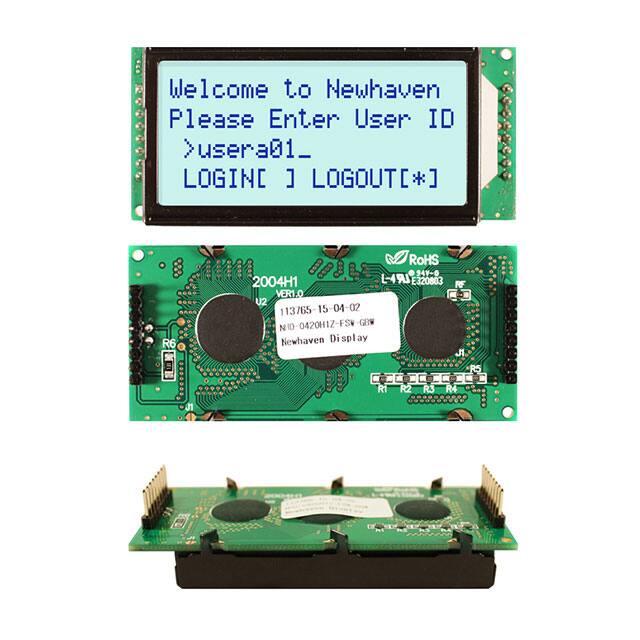

NHD-0420H1Z-FSW-GBW

Specifications

Üretici Parça No

NHD-0420H1Z-FSW-GBW

Display Type

STN - Super-Twisted Nematic

Viewing Area Height

28 mm

Character Font Type

5x8 + CSR

Character Size

5.15mm Hx2.35mm W

Outline LXWXH

79.00mm x 36.00mm x 13.00mm

Yayın Yılı

2011

Overall Height

36mm

Dot Size

0.43mm Wx0.60mm H

Besleme Gerilimi

4.7V~5.5V

Operating Temperaturemin

-20 °C

Controller Type

SPLC780D OR ST7066U

Text Color

Gray

Rows Per Display

4

Overall Length

79mm

Number Of Characters

80

Besleme Gerilimi

5V

Operating Supply Voltage

5V

Overall Depth

13mm

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - White

Supply Voltagenom

5 V

Display Height

5.15mm

Display Format

20 x 4

Viewing Area

60.00mm L x 28.00mm W

Background Color

White

Ihs Manufacturer

NEWHAVEN DISPLAY INTERNATIONAL INC

Character Format

5 x 8 Dots

Contrast Ratio

2:1

Parça Durumu

Active

Risk Rank

5.02

Operating Temperaturemax

70 °C

RoHS Durumu

RoHS Compliant

Characters Per Row

20

Backlight Type

LED

REACH Uyumluluk Kodu

compliant

Çalışma Sıcaklığı

-20°C~70°C

Ambalaj

Bulk

Interface

Parallel

Part Life Cycle Code

Contact Manufacturer
