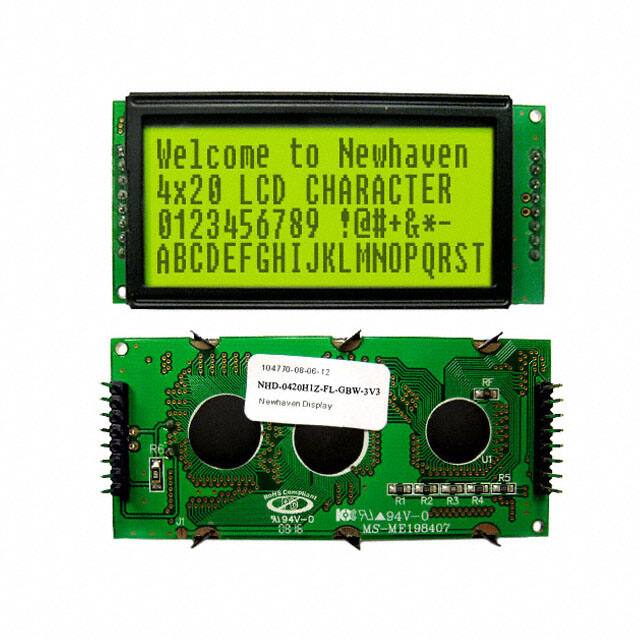

NHD-0420H1Z-FL-GBW

Specifications

Number Of Characters

80

Interface

Parallel

Operating Supply Voltage

5V

Display Mode

Transflective

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.43mm Wx0.60mm H

Backlight Type

LED

Text Color

Gray

Ambalaj

Bulk

Çalışma Sıcaklığı

-20°C~70°C

Character Format

5 x 8 Dots

Character Size

5.15mm Hx2.35mm W

Yayın Yılı

2008

Outline LXWXH

79.00mm x 36.00mm x 13.00mm

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - Yellow/Green

Background Color

Green

Viewing Area

60.00mm L x 28.00mm W

Display Type

STN - Super-Twisted Nematic

Display Format

20 x 4
