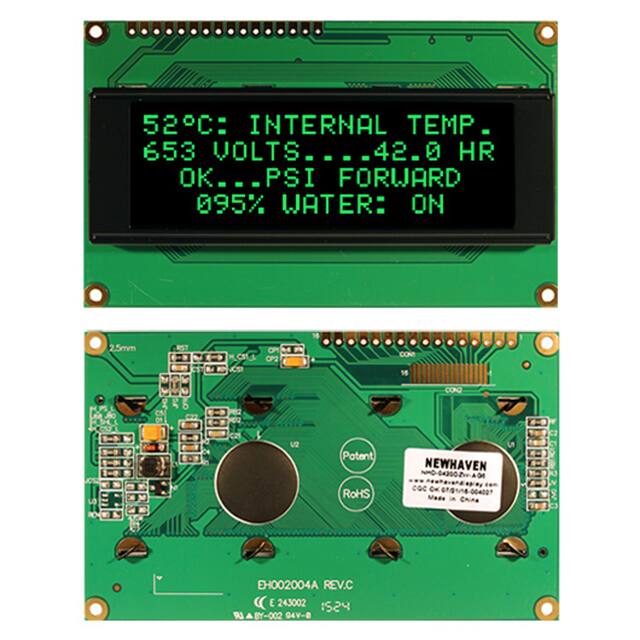

NHD-0420DZW-AG5

Specifications

Display Format

20 x 4

Display Type

OLED

Background Color

Black

Viewing Area

77.00mm L x 25.20mm W

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

Without Backlight

RoHS Durumu

RoHS Compliant

Parça Durumu

Not For New Designs

Character Size

4.75mm Hx2.90mm W

Yayın Yılı

2009

Outline LXWXH

98.00mm x 60.00mm x 10.00mm

Character Format

5 x 8 Dots

Viewing Angle

80 °

Çalışma Sıcaklığı

-40°C~80°C

Text Color

Green

Dot Size

0.54mm Wx0.55mm H

Besleme Gerilimi

3V~5.3V

Display Mode

Passive

Fabrika Tedarik Süresi

18 Weeks

Operating Supply Voltage

3V

Montaj

Wire

Number Of Characters

80

Interface

Parallel/Serial
