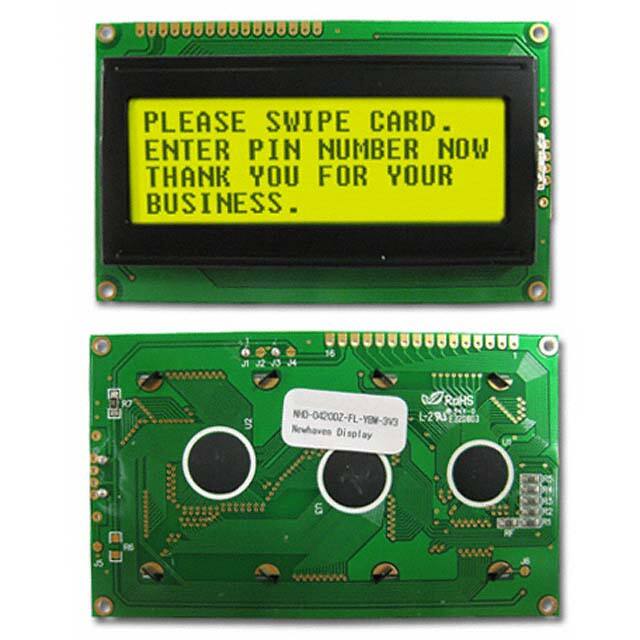

NHD-0420DZ-FL-YBW-3V

Specifications

Character Font Type

5x8 + CSR

Yayın Yılı

2009

Outline LXWXH

98.00mm x 60.00mm x 14.00mm

Character Size

4.75mm Hx2.95mm W

Overall Height

60mm

Display Type

STN - Super-Twisted Nematic

Overall Length

98mm

Rows Per Display

4

Number Of Characters

80

Besleme Gerilimi

3.3V

Operating Supply Voltage

3V

Overall Depth

10.9mm

Besleme Gerilimi

3V~3.5V

Dot Size

0.55mm Wx0.55mm H

Text Color

Gray

Character Format

5 x 8 Dots

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Characters Per Row

20

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - Yellow/Green

Display Height

4.75mm

Display Format

20 x 4

Viewing Area

76.00mm L x 25.20mm W

Background Color

Green

Interface

Parallel

Display Mode

Transflective

Backlight Type

LED

Çalışma Sıcaklığı

-20°C~70°C

Ambalaj

Bulk
