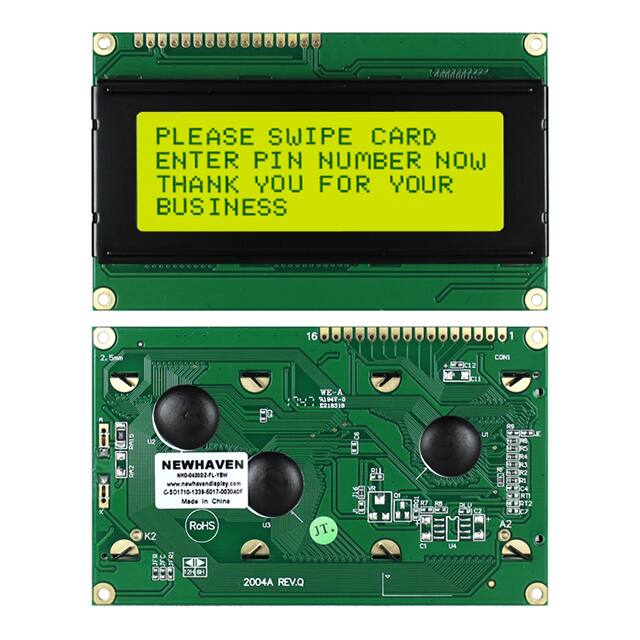

NHD-0420DZ-FL-YBW

Specifications

Character Size

4.75mm Hx2.95mm W

Outline LXWXH

98.00mm x 60.00mm x 13.60mm

Yayın Yılı

2009

Display Type

STN - Super-Twisted Nematic

Operating Supply Voltage

5V

Number Of Characters

80

Besleme Gerilimi

4.5V~5.5V

Dot Size

0.55mm Wx0.55mm H

Controller Type

SPLC780D OR ST7066U

Text Color

Gray

Character Format

5 x 8 Dots

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Contrast Ratio

2:1

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - Yellow/Green

Viewing Area

77.00mm L x 25.20mm W

Background Color

Green

Display Format

20 x 4

Montaj

Screw

Interface

Parallel

Pin Sayısı

16

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective

Backlight Type

LED

Ambalaj

Bulk

Çalışma Sıcaklığı

-20°C~70°C
