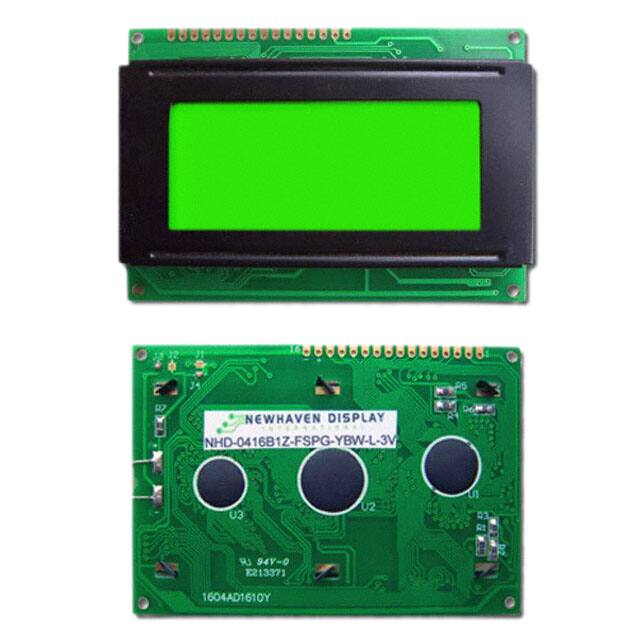

NHD-0416B1Z-FSPG-YBW-L-3V

Specifications

Character Format

5 x 8 Dots

Outline LXWXH

87.00mm x 60.00mm x 14.00mm

Yayın Yılı

2009

Character Size

4.75mm Hx2.95mm W

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Backlight

LED - Green

Nem Hassasiyeti (MSL)

Not Applicable

Background Color

Green

Viewing Area

61.80mm L x 25.20mm W

Display Type

STN - Super-Twisted Nematic

Display Format

16 x 4

Number Of Characters

64

Interface

Parallel

Operating Supply Voltage

3V

Display Mode

Transflective

Dot Size

0.55mm Wx0.55mm H

Besleme Gerilimi

3.2V~3.4V

Backlight Type

LED

Ambalaj

Bulk

Çalışma Sıcaklığı

-20°C~70°C
