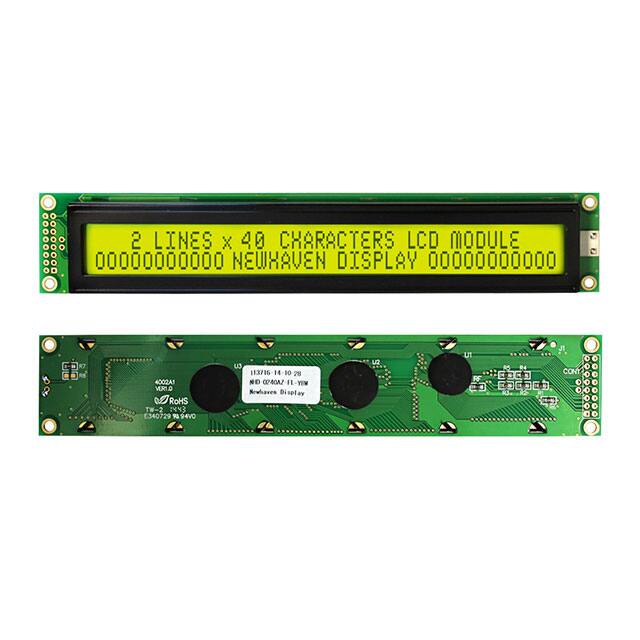

NHD-0240AZ-FL-YBW

Specifications

Display Type

STN - Super-Twisted Nematic

Overall Height

33.5mm

Yayın Yılı

2009

Character Font Type

5x8 Dot

Outline LXWXH

182.00mm x 33.50mm x 13.50mm

Character Size

5.55mm Hx3.20mm W

Controller Type

SPLC780D OR ST7066U

Text Color

Blue

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.60mm Wx0.65mm H

Overall Depth

13.5mm

Operating Supply Voltage

5V

Number Of Characters

80

Besleme Gerilimi

5V

Overall Length

182mm

Rows Per Display

2

Background Color

Green

Viewing Area

152.50mm L x 16.50mm W

Display Format

40 x 2

Display Height

5.55mm

Backlight

LED - Yellow/Green

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

RoHS Compliant

Characters Per Row

40

Parça Durumu

Active

Contrast Ratio

2:1

Character Format

5 x 8 Dots

Ambalaj

Bulk

Çalışma Sıcaklığı

-20°C~70°C

Backlight Type

LED

Pin Sayısı

16

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective

Montaj

Screw

Interface

Parallel
