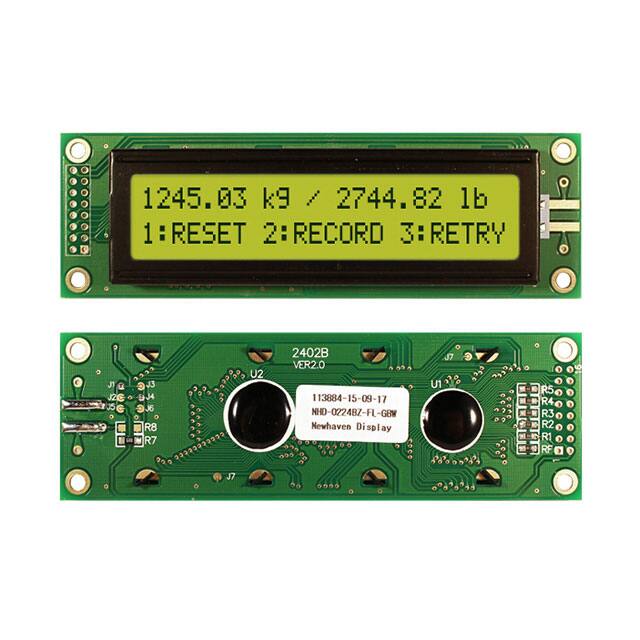

NHD-0224BZ-FL-GBW

Specifications

Display Format

24 x 2

Display Type

STN - Super-Twisted Nematic

Background Color

Green

Viewing Area

83.00mm L x 18.60mm W

Backlight

LED - Yellow/Green

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Outline LXWXH

116.00mm x 37.00mm x 13.50mm

Yayın Yılı

2009

Character Size

5.55mm Hx2.70mm W

Character Format

5 x 8 Dots

Çalışma Sıcaklığı

-20°C~70°C

Controller Type

KS0066U

Text Color

Blue

Backlight Type

LED

Dot Size

0.50mm Wx0.65mm H

Besleme Gerilimi

4.7V~5.5V

Display Mode

Transflective

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

5V

Number Of Characters

48

Interface

Parallel
