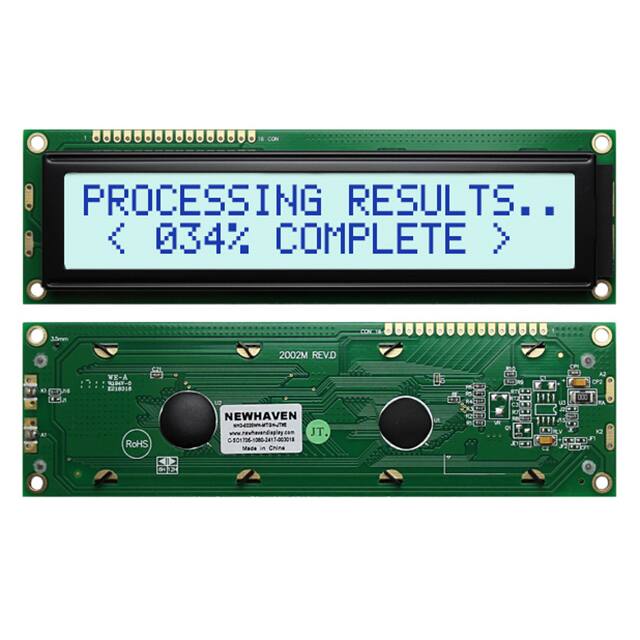

NHD-0220WH-MTGH-JT#E

Specifications

Character Format

5 x 8 Dots

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Contrast Ratio

2:1

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - White

Viewing Area

123.00mm L x 23.00mm W

Background Color

White

Display Format

20 x 2

Montaj

Screw

Interface

Parallel

Pin Sayısı

16

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective

Backlight Type

LED

Çalışma Sıcaklığı

-20°C~70°C

Character Size

9.22mm Hx4.84mm W

Outline LXWXH

146.00mm x 43.00mm x 13.70mm

Yayın Yılı

2009

Display Type

STN - Super-Twisted Nematic

Operating Supply Voltage

5V

Number Of Characters

40

Dot Size

0.92mm Wx1.10mm H

Besleme Gerilimi

4.5V~5.5V

Text Color

Blue

Controller Type

KS0066U
