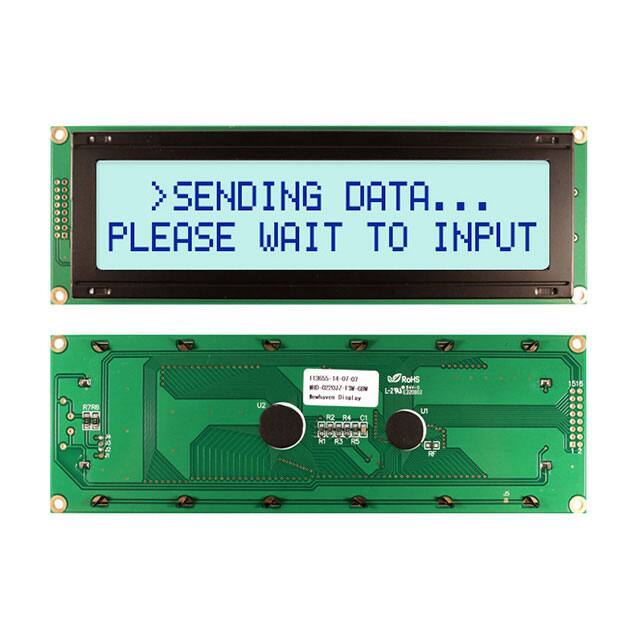

NHD-0220JZ-FSW-GBW

Specifications

Backlight

LED - White

Nem Hassasiyeti (MSL)

Not Applicable

Display Type

STN - Super-Twisted Nematic

Display Format

20 x 2

Background Color

White

Viewing Area

147.00mm L x 35.20mm W

Character Size

12.70mm Hx5.90mm W

Yayın Yılı

2009

Outline LXWXH

182.00mm x 60.00mm x 14.00mm

Character Format

5 x 8 Dots

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Backlight Type

LED

Besleme Gerilimi

4.7V~5.5V

Dot Size

1.10mm Wx1.50mm H

Çalışma Sıcaklığı

-20°C~70°C

Controller Type

S6A0069

Text Color

Blue

Interface

Parallel

Number Of Characters

40

Operating Supply Voltage

5V

Display Mode

Transflective

Fabrika Tedarik Süresi

14 Weeks
