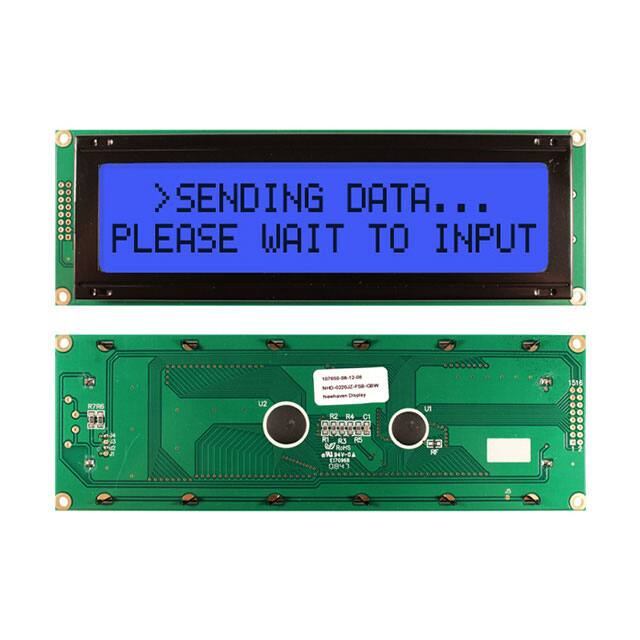

NHD-0220JZ-FSB-GBW

Specifications

Viewing Area

147.00mm L x 35.20mm W

Display Type

STN - Super-Twisted Nematic

Display Format

20 x 2

Backlight

LED - Blue

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Character Format

5 x 8 Dots

Character Size

12.70mm Hx5.90mm W

Yayın Yılı

2009

Outline LXWXH

182.00mm x 60.00mm x 14.00mm

Controller Type

S6A0069

Text Color

Blue

Çalışma Sıcaklığı

-20°C~70°C

Dot Size

1.10mm Wx1.50mm H

Besleme Gerilimi

4.7V~5.5V

Backlight Type

LED

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective

Interface

Parallel

Number Of Characters

40

Operating Supply Voltage

5V
