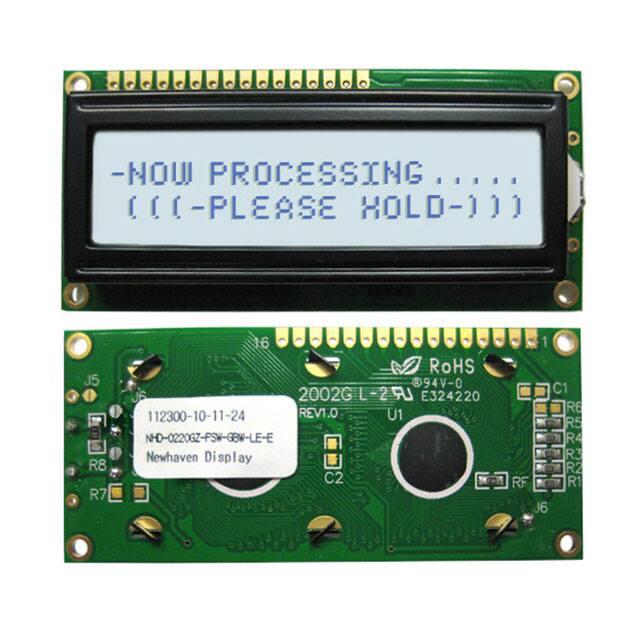

NHD-0220GZ-FSW-GBW-LE-E

Specifications

Character Format

5 x 8 Dots

Character Size

4.62mm Hx2.49mm W

Yayın Yılı

2009

Outline LXWXH

80.00mm x 36.00mm x 13.50mm

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Backlight

LED - White

Nem Hassasiyeti (MSL)

Not Applicable

Background Color

White

Viewing Area

64.50mm L x 16.40mm W

Display Type

STN - Super-Twisted Nematic

Display Format

20 x 2

Interface

Parallel

Number Of Characters

40

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective

Besleme Gerilimi

4.5V~5.5V

Dot Size

0.46mm Wx0.53mm H

Backlight Type

LED

Controller Type

SPLC780D OR ST7066U

Text Color

Blue

Çalışma Sıcaklığı

-20°C~70°C
