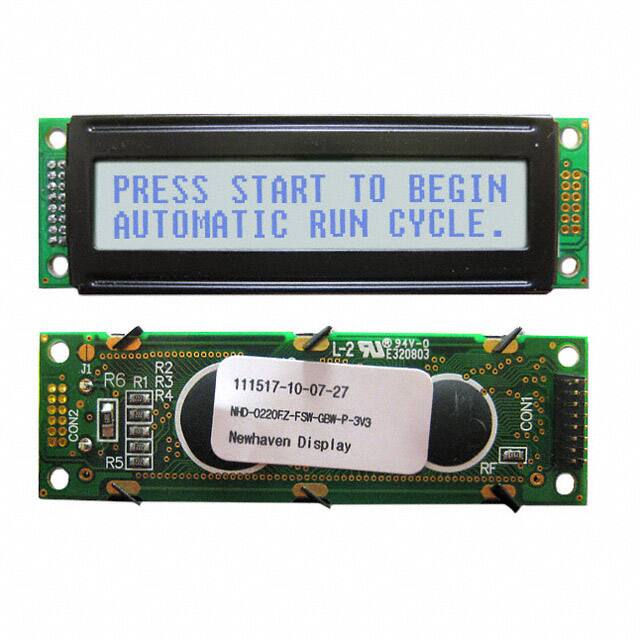

NHD-0220FZ-FSW-GBW-P-3V3

Specifications

Display Format

20 x 2

Display Type

STN - Super-Twisted Nematic

Background Color

White

Viewing Area

46.00mm L x 10.80mm W

Backlight

LED - White

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

RoHS Compliant

Parça Durumu

Obsolete

Outline LXWXH

65.00mm x 20.00mm x 8.00mm

Yayın Yılı

2009

Character Size

3.23mm Hx1.85mm W

Character Format

5 x 8 Dots

Çalışma Sıcaklığı

-20°C~70°C

Ambalaj

Bulk

Text Color

Gray

Backlight Type

LED

Dot Size

0.33mm Wx0.36mm H

Besleme Gerilimi

3V~3.3V

Display Mode

Transflective

Operating Supply Voltage

3.3V

Number Of Characters

40

Interface

Parallel
