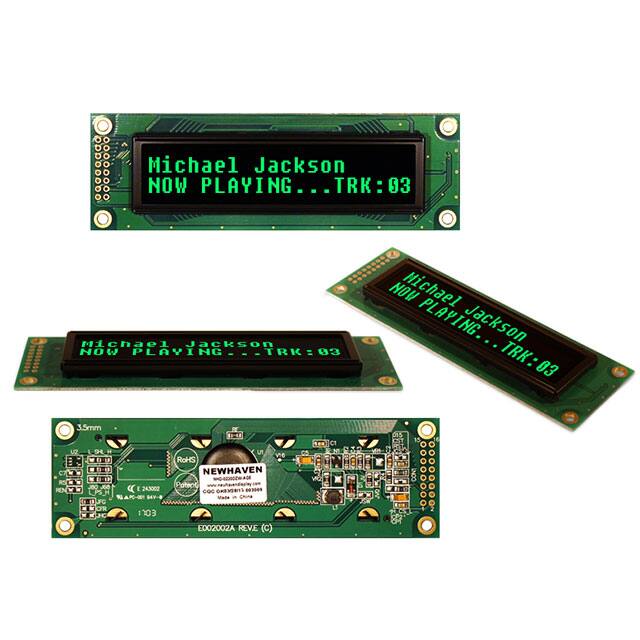

NHD-0220DZW-AG5

Specifications

Backlight

Without Backlight

Nem Hassasiyeti (MSL)

Not Applicable

Viewing Area

85.00mm L x 18.60mm W

Background Color

Black

Display Format

20 x 2

Display Type

OLED

Character Format

5 x 8 Dots

Viewing Angle

80 °

Character Size

5.55mm Hx3.20mm W

Outline LXWXH

116.00mm x 37.00mm x 9.80mm

Yayın Yılı

2009

RoHS Durumu

RoHS Compliant

Parça Durumu

Not For New Designs

Dot Size

0.60mm Wx0.65mm H

Besleme Gerilimi

3V~5.3V

Text Color

Green

Çalışma Sıcaklığı

-40°C~80°C

Operating Supply Voltage

3V

Montaj

Wire

Number Of Characters

40

Interface

Parallel/Serial

Fabrika Tedarik Süresi

18 Weeks

Display Mode

Passive
