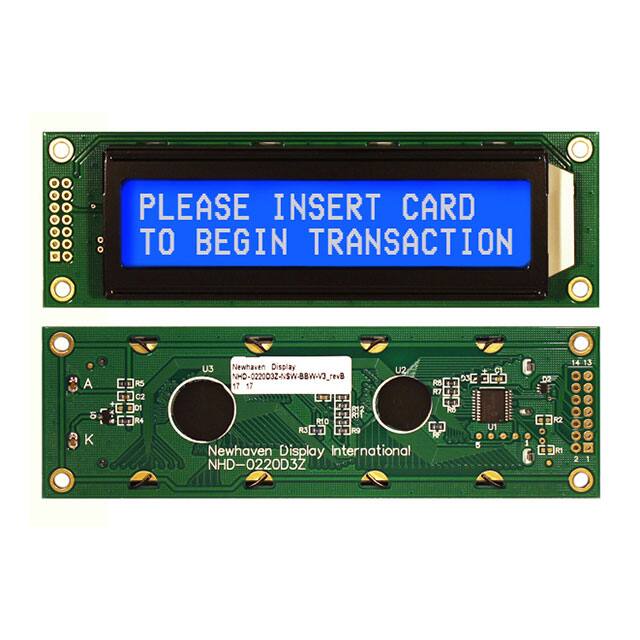

NHD-0220D3Z-NSW-BBW-V3

Specifications

Operating Supply Voltage

5V

Number Of Characters

40

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.60mm Wx0.65mm H

Text Color

White

Controller Type

PIC16F697

Character Size

5.55mm Hx3.20mm W

Outline LXWXH

116.00mm x 37.00mm x 13.50mm

Yayın Yılı

2009

Kurşunsuz Kodu

yes

Display Type

STN - Super-Twisted Nematic

Montaj

Screw

Interface

I2C, RS-232, SPI

Optoelectronic Device Type

5 X 8 DOT MATRIX LCD DISPLAY

Fabrika Tedarik Süresi

14 Weeks

Pin Sayısı

14

Display Mode

Transmissive

Backlight Type

LED

Çalışma Sıcaklığı

-20°C~70°C

Character Format

5 x 8 Dots

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Contrast Ratio

3:1

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - White

Viewing Area

83.00mm L x 18.60mm W

Background Color

Blue

Display Format

20 x 2
