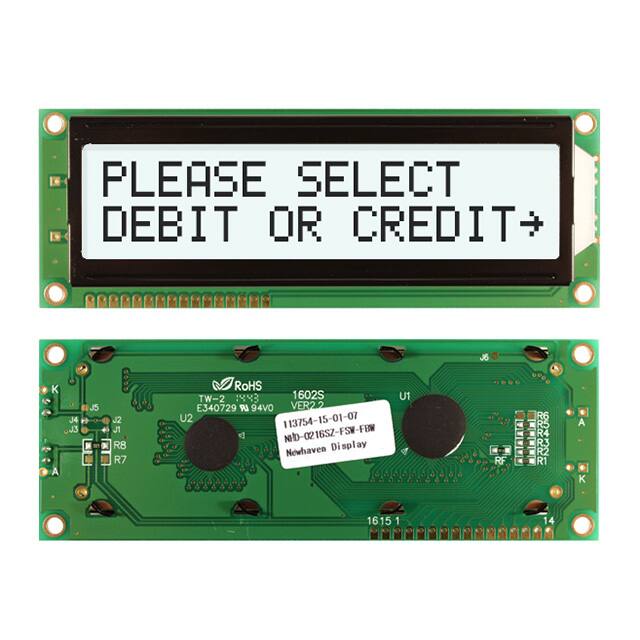

NHD-0216SZ-FSW-FBW

Specifications

Interface

Parallel

Number Of Characters

32

Operating Supply Voltage

5V

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective

Besleme Gerilimi

4.7V~5.5V

Dot Size

1.00mm Wx1.15mm H

Backlight Type

LED

Controller Type

SPLC780D OR ST7066U

Text Color

Black

Ambalaj

Bulk

Çalışma Sıcaklığı

-20°C~70°C

Character Format

5 x 8 Dots

Character Size

9.55mm Hx5.20mm W

Yayın Yılı

2009

Outline LXWXH

122.00mm x 44.00mm x 13.50mm

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Backlight

LED - White

Nem Hassasiyeti (MSL)

Not Applicable

Background Color

White

Viewing Area

99.00mm L x 24.00mm W

Display Type

FSTN - Film Super-Twisted Nematic

Display Format

16 x 2
