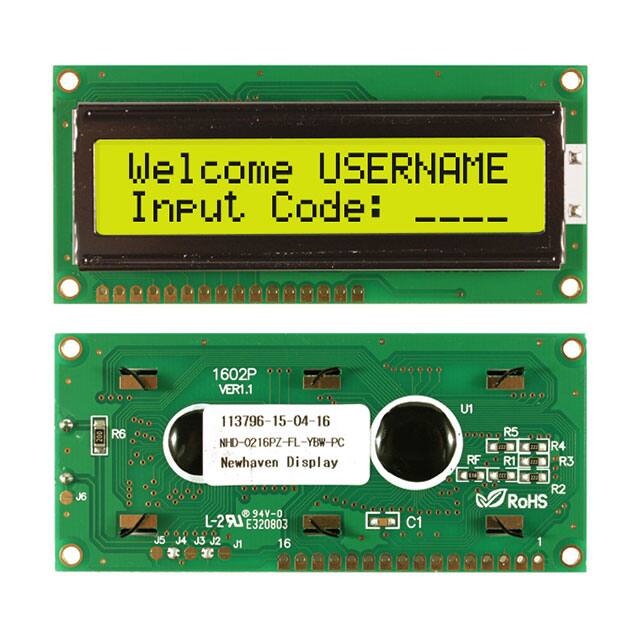

NHD-0216PZ-FL-YBW-PC

Specifications

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.50mm Wx0.55mm H

Controller Type

SPLC780D OR ST7066U

Text Color

Blue

Number Of Characters

32

Operating Supply Voltage

5V

Display Type

STN - Super-Twisted Nematic

Character Size

4.35mm Hx2.95mm W

Yayın Yılı

2009

Outline LXWXH

80.00mm x 36.00mm x 13.50mm

Backlight Type

LED

Çalışma Sıcaklığı

-20°C~70°C

Interface

Parallel

Montaj

Screw

Display Mode

Transflective

Fabrika Tedarik Süresi

14 Weeks

Pin Sayısı

16

Backlight

LED - Yellow/Green

Nem Hassasiyeti (MSL)

Not Applicable

Display Format

16 x 2

Viewing Area

64.50mm L x 13.80mm W

Background Color

Green

Character Format

5 x 8 Dots

Contrast Ratio

2:1

Parça Durumu

Active

RoHS Durumu

RoHS Compliant
