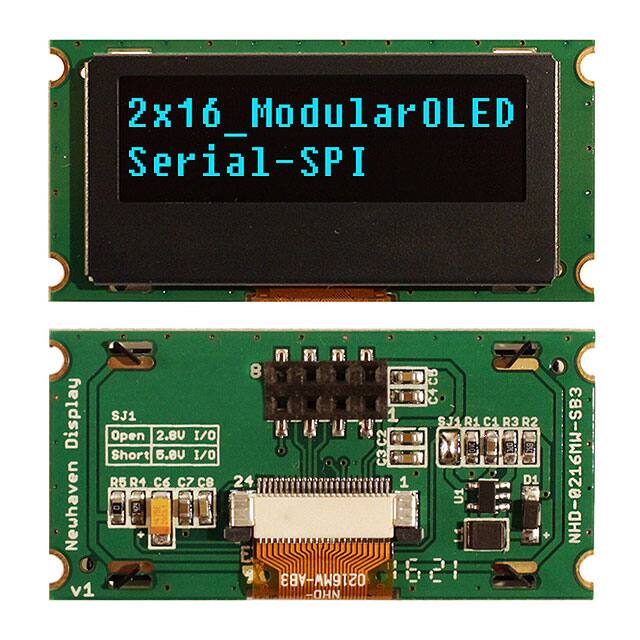

NHD-0216MW-SB3

Specifications

Character Size

4.45mm Hx1.82mm W

Yayın Yılı

2016

Outline LXWXH

49.20mm x 24.40mm x 4.50mm

Character Format

5 x 8 Dots

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Backlight

Without Backlight

Nem Hassasiyeti (MSL)

Not Applicable

Display Format

16 x 2

Display Type

OLED

Background Color

Black

Viewing Area

36.22mm L x 11.40mm W

Interface

SPI

Number Of Characters

32

Display Mode

Passive

Fabrika Tedarik Süresi

16 Weeks

Dot Size

0.34mm Wx0.53mm H

Besleme Gerilimi

2.4V~5.5V

Çalışma Sıcaklığı

-40°C~85°C

Text Color

Blue

Controller Type

US2066
