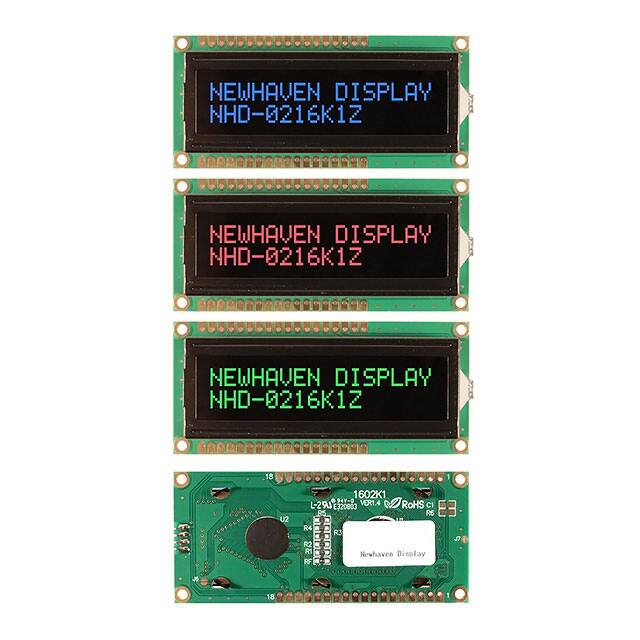

NHD-0216K1Z-NS(RGB)-FBW-REV1

Specifications

Character Format

5 x 8 Dots

Character Size

5.23mm Hx3.00mm W

Yayın Yılı

2009

Outline LXWXH

80.00mm x 36.00mm x 13.00mm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Backlight

LED - Red/Green/Blue

Nem Hassasiyeti (MSL)

Not Applicable

Background Color

Black

Viewing Area

64.50mm L x 16.40mm W

Display Format

16 x 2

Display Type

FSTN - Film Super-Twisted Nematic

Operating Supply Voltage

5.5V

Number Of Characters

32

Interface

Parallel

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transmissive

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.56mm Wx0.61mm H

Backlight Type

LED

Ambalaj

Bulk

Controller Type

SPLC780D OR ST7066U

Text Color

Red/Green/Blue

Çalışma Sıcaklığı

-20°C~70°C
