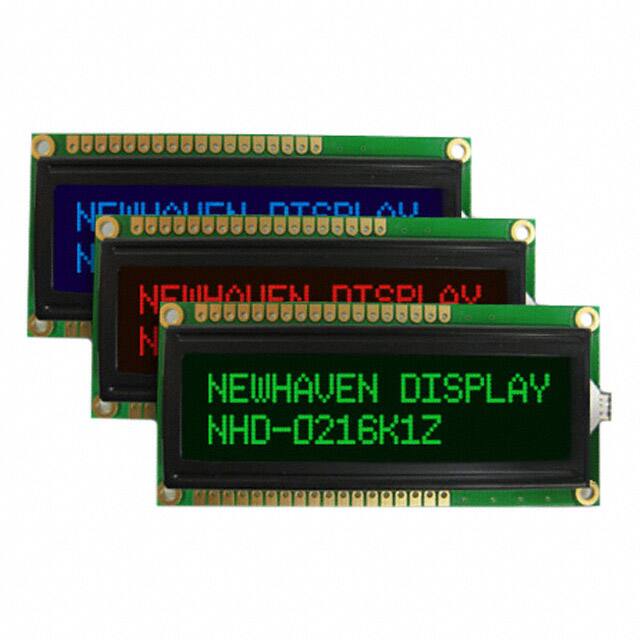

NHD-0216K1Z-NS(RGB)-FBW

Specifications

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Character Size

5.23mm Hx3.00mm W

Yayın Yılı

2009

Outline LXWXH

80.00mm x 36.00mm x 13.50mm

Character Format

5 x 8 Dots

Display Type

FSTN - Film Super-Twisted Nematic

Display Format

16 x 2

Background Color

Black

Viewing Area

64.50mm L x 16.40mm W

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - Red/Green/Blue

Display Mode

Transmissive

Interface

Parallel

Number Of Characters

32

Operating Supply Voltage

5V

Çalışma Sıcaklığı

-20°C~70°C

Text Color

Red/Green/Blue

Ambalaj

Bulk

Backlight Type

LED

Dot Size

0.56mm Wx0.61mm H

Besleme Gerilimi

4.7V~5.5V
