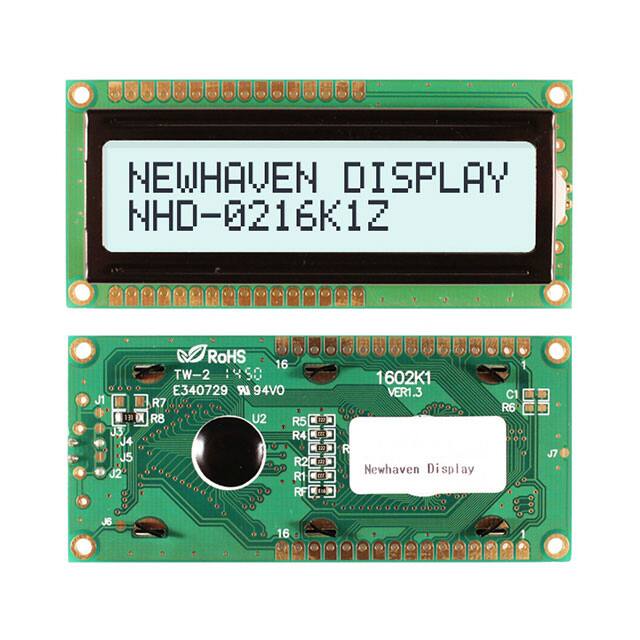

NHD-0216K1Z-FSW-FBW-L

Specifications

Parça Durumu

Active

Contrast Ratio

5:1

RoHS Durumu

RoHS Compliant

Character Format

5 x 8 Dots

Display Format

16 x 2

Background Color

White

Viewing Area

64.50mm L x 16.40mm W

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - White

Display Mode

Transflective

Pin Sayısı

16

Fabrika Tedarik Süresi

14 Weeks

Optoelectronic Device Type

GRAPHIC DOT MATRIX LCD DISPLAY

Interface

Parallel

Montaj

Screw

Çalışma Sıcaklığı

-20°C~70°C

Ambalaj

Bulk

Backlight Type

LED

Yayın Yılı

2009

Outline LXWXH

80.00mm x 36.00mm x 13.50mm

Character Size

5.23mm Hx3.00mm W

Display Type

FSTN - Film Super-Twisted Nematic

Number Of Characters

32

Operating Supply Voltage

5V

Controller Type

SPLC780D OR ST7066U

Text Color

Black

Dot Size

0.56mm Wx0.61mm H

Besleme Gerilimi

4.7V~5.5V
