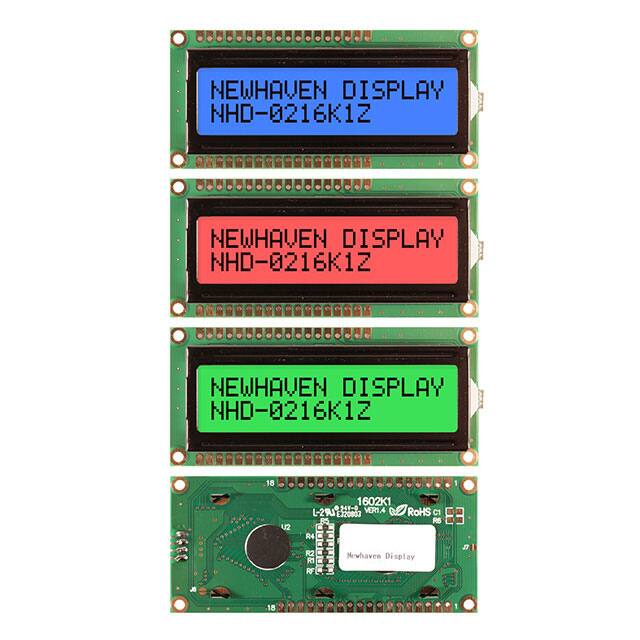

NHD-0216K1Z-FS(RGB)-FBW-REV1

Specifications

Display Format

16 x 2

Viewing Area

64.50mm L x 16.40mm W

Background Color

Red/Green/Blue

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - Red/Green/Blue

RoHS Durumu

RoHS Compliant

Contrast Ratio

5:1

Parça Durumu

Active

Character Format

5 x 8 Dots

Çalışma Sıcaklığı

-20°C~70°C

Backlight Type

LED

Display Mode

Transflective

Pin Sayısı

18

Fabrika Tedarik Süresi

14 Weeks

Montaj

Screw

Interface

Parallel

Display Type

FSTN - Film Super-Twisted Nematic

Character Size

5.23mm Hx3.00mm W

Outline LXWXH

80.00mm x 36.00mm x 13.00mm

Yayın Yılı

2009

Text Color

Black

Controller Type

SPLC780D OR ST7066U

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.56mm Wx0.61mm H

Operating Supply Voltage

5.5V

Number Of Characters

32
