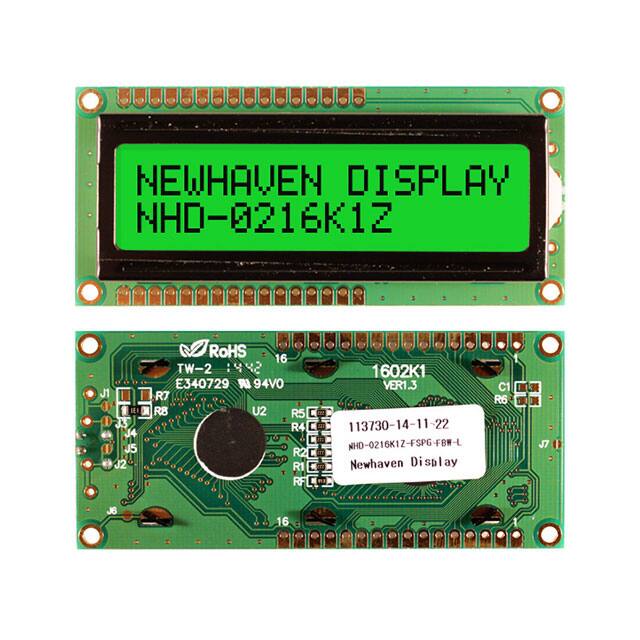

NHD-0216K1Z-FSPG-FBW-L

Specifications

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.56mm Wx0.61mm H

Backlight Type

LED

Ambalaj

Bulk

Controller Type

SPLC780D OR ST7066U

Text Color

Black

Çalışma Sıcaklığı

-20°C~70°C

Operating Supply Voltage

5V

Interface

Parallel

Number Of Characters

32

Fabrika Tedarik Süresi

14 Weeks

Display Mode

Transflective

Backlight

LED - Green

Nem Hassasiyeti (MSL)

Not Applicable

Background Color

Green

Viewing Area

64.50mm L x 16.40mm W

Display Format

16 x 2

Display Type

FSTN - Film Super-Twisted Nematic

Character Format

5 x 8 Dots

Character Size

5.23mm Hx3.00mm W

Yayın Yılı

2009

Outline LXWXH

80.00mm x 36.00mm x 13.50mm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active
