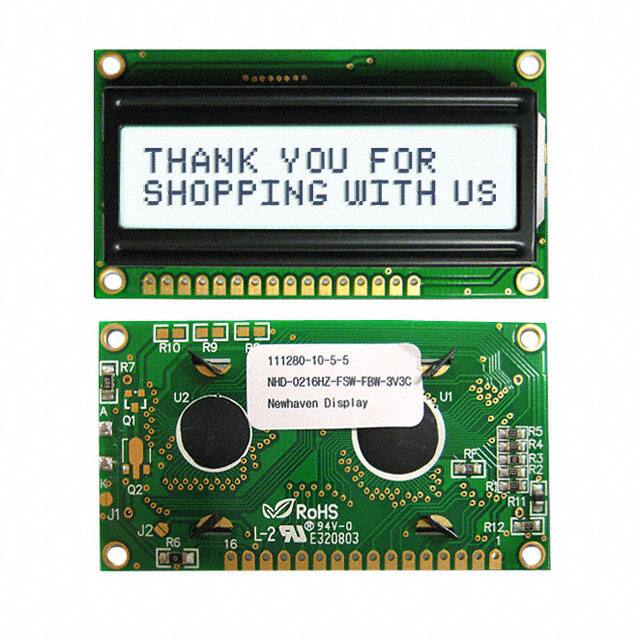

NHD-0216HZ-FSW-FBW-3V3C

Specifications

Display Type

FSTN - Film Super-Twisted Nematic

Kılıf / Paket

Module

Character Size

4.99mm Hx2.55mm W

Outline LXWXH

65.50mm x 36.70mm x 13.50mm

Character Font Type

5x7 + CSR

Yayın Yılı

2009

Overall Height

36.7mm

Text Color

Gray

Besleme Gerilimi

2.7V~3.3V

Dot Size

0.47mm Wx0.58mm H

Overall Depth

15mm

Overall Length

65.5mm

Rows Per Display

2

Operating Supply Voltage

3V

Number Of Characters

32

Besleme Gerilimi

3V

Display Format

16 x 2

Display Height

4.99mm

Viewing Area

54.00mm L x 14.40mm W

Background Color

White

Backlight

LED - White

Nem Hassasiyeti (MSL)

Not Applicable

Characters Per Row

16

RoHS Durumu

RoHS Compliant

Contrast Ratio

5:1

Parça Durumu

Obsolete

Character Format

5 x 8 Dots

Çalışma Sıcaklığı

-20°C~70°C

Ambalaj

Bulk

Backlight Type

LED

Display Mode

Transflective

Pin Sayısı

16

Montaj

Screw

Interface

Parallel
