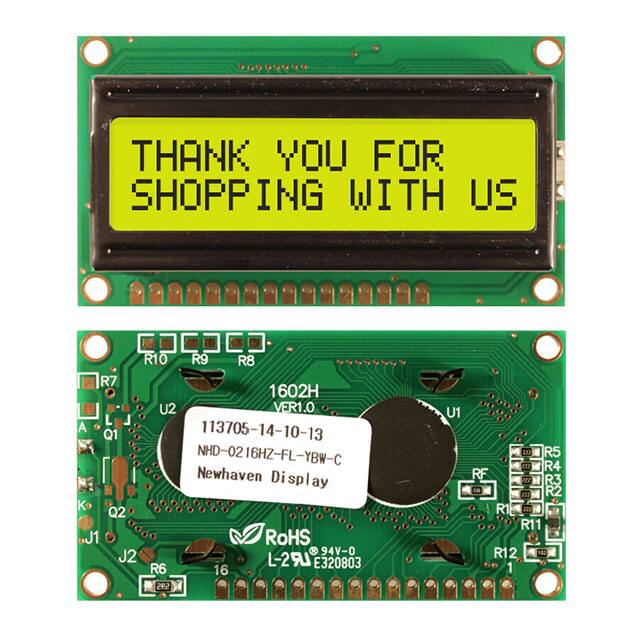

NHD-0216HZ-FL-YBW

Specifications

Nem Hassasiyeti (MSL)

Not Applicable

Backlight

LED - Yellow/Green

Display Format

16 x 2

Display Height

4.99mm

Viewing Area

54.00mm L x 14.40mm W

Background Color

Green

Character Format

5 x 8 Dots

RoHS Durumu

RoHS Compliant

Characters Per Row

16

Parça Durumu

Obsolete

Backlight Type

LED

Çalışma Sıcaklığı

-20°C~70°C

Ambalaj

Bulk

Interface

Parallel

Display Mode

Transflective

Display Type

STN - Super-Twisted Nematic

Yayın Yılı

2004

Character Font Type

5x7 + CSR

Outline LXWXH

65.50mm x 36.70mm x 13.50mm

Character Size

4.99mm Hx2.55mm W

Overall Height

37mm

Besleme Gerilimi

4.7V~5.5V

Dot Size

0.47mm Wx0.58mm H

Text Color

Gray

Overall Length

66mm

Rows Per Display

2

Operating Supply Voltage

5V

Besleme Gerilimi

5V

Number Of Characters

32

Overall Depth

15mm
