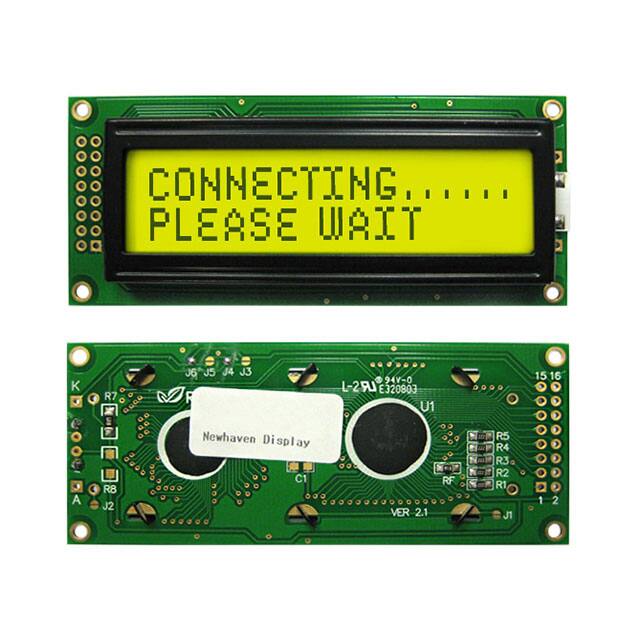

NHD-0216EZ-FL-YBW

Specifications

Character Size

5.23mm Hx3.00mm W

Yayın Yılı

2009

Outline LXWXH

85.00mm x 36.00mm x 13.50mm

Character Format

5 x 8 Dots

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Backlight

LED - Yellow/Green

Nem Hassasiyeti (MSL)

Not Applicable

Display Type

STN - Super-Twisted Nematic

Display Format

16 x 2

Background Color

Green

Viewing Area

64.50mm L x 16.40mm W

Interface

Parallel

Number Of Characters

32

Operating Supply Voltage

5V

Display Mode

Transflective

Fabrika Tedarik Süresi

14 Weeks

Backlight Type

LED

Dot Size

0.56mm Wx0.61mm H

Besleme Gerilimi

4.7V~5.5V

Çalışma Sıcaklığı

-20°C~70°C

Text Color

Blue

Controller Type

SPLC780D OR ST7066U

Ambalaj

Bulk
