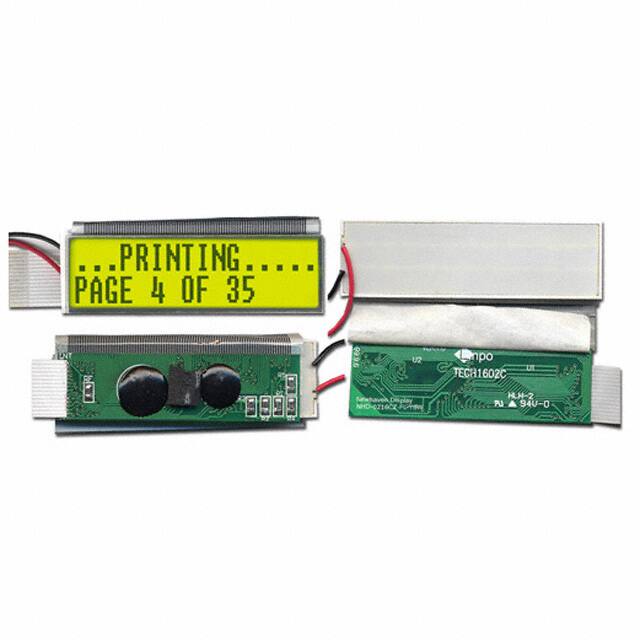

NHD-0216CZ-FL-YBW

Specifications

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Outline LXWXH

66.70mm x 23.30mm x 11.00mm

Yayın Yılı

2009

Character Size

5.55mm Hx2.95mm W

Character Format

5 x 8 Dots

Display Type

STN - Super-Twisted Nematic

Display Format

16 x 2

Viewing Area

61.70mm L x 15.60mm W

Background Color

Green

Backlight

LED - Yellow/Green

Nem Hassasiyeti (MSL)

Not Applicable

Display Mode

Transflective

Number Of Characters

32

Interface

Parallel

Operating Supply Voltage

5V

Çalışma Sıcaklığı

-20°C~70°C

Text Color

Gray

Ambalaj

Bulk

Backlight Type

LED

Dot Size

0.55mm Wx0.65mm H

Besleme Gerilimi

4.7V~5.5V
