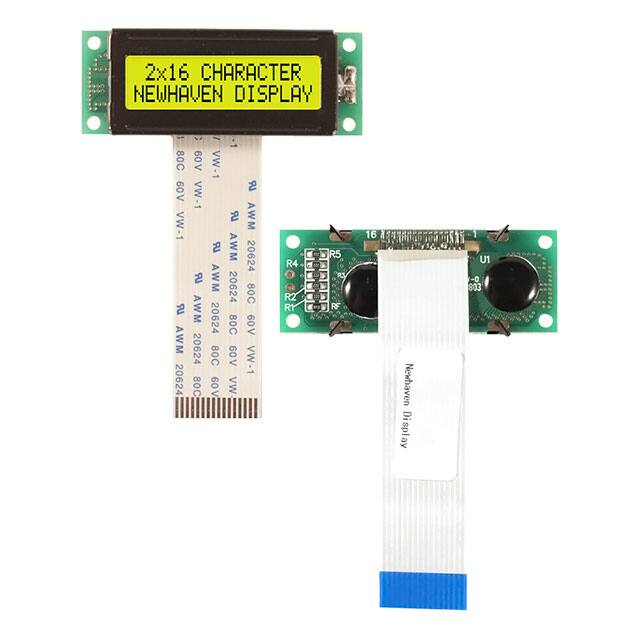

NHD-02161Z-FSY-YBW-C

Specifications

Character Format

5 x 8 Dots

Montaj

Screw

Besleme Gerilimi

4.7V~5.5V

Background Color

Green

Interface

Parallel

Fabrika Tedarik Süresi

14 Weeks

Operating Supply Voltage

7V

Viewing Area

36.00mm L x 10.00mm W

Display Type

STN - Super-Twisted Nematic

Outline LXWXH

53.00mm x 20.00mm x 8.50mm

RoHS Durumu

RoHS Compliant

Pin Sayısı

16

Contrast Ratio

2:1

Controller Type

SPLC780D OR ST7066U

Backlight Type

LED

Display Mode

Transflective

Character Size

3.23mm Hx1.85mm W

Backlight

LED - Yellow/Green

Display Format

16 x 2

Çalışma Sıcaklığı

-20°C~70°C

Nem Hassasiyeti (MSL)

Not Applicable

Parça Durumu

Active

Text Color

Blue

Dot Size

0.33mm Wx0.36mm H

Number Of Characters

32

Yayın Yılı

2009
